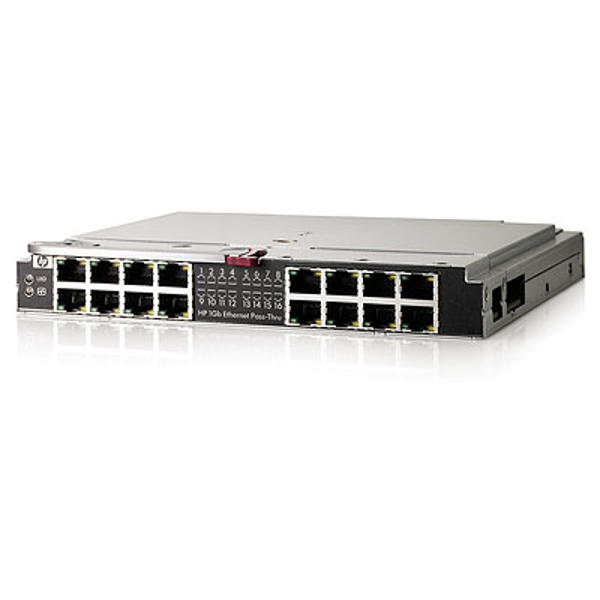

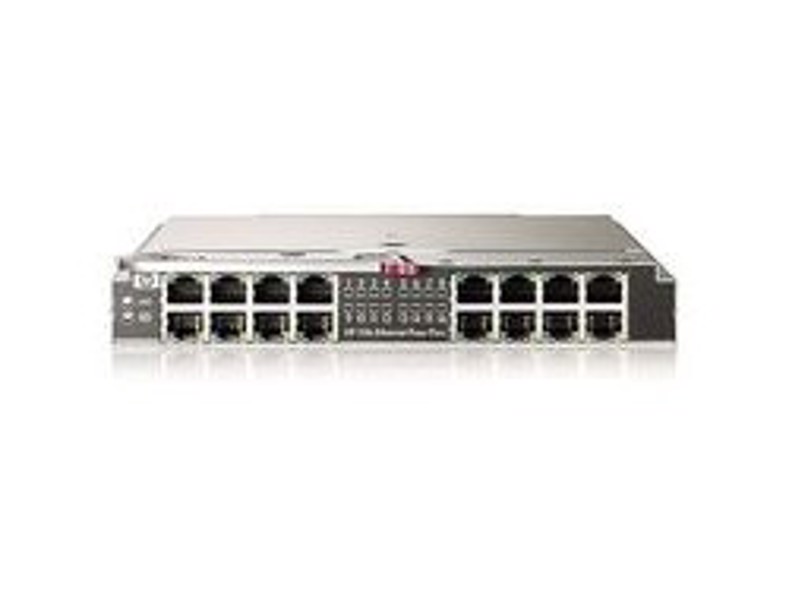

HPE 1Gb Ethernet Pass-Thru Module Expansionsmodul Gigabit Ethernet x 16 - for BLc3000 Enclosure, BLc7000 Single-Phase Enclosure, BLc7000 Three-Phase Enclosure (406740-B21)
Module for c-Class BladeSystem
Brand: HPE
SKU: 406740-B21
£0.00
Price excl. VAT
£0.00
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Compatibility
HP BladeSystem c-Class
Weight
299 g
Hewlett Packard Enterprise 1GB Ethernet Pass-Thru Mod. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Compatibility: HP BladeSystem c-Class. Weight: 299 g
https://h30094.www3.hp.com/product.asp?sku=2989523&mfg_part=406740-B21&pagemode=ca
The HP 1Gb Ethernet Pass-Thru Module for c-Class BladeSystem is designed for those customers desiring an unmanaged direct connection between each server blade within the enclosure and an external network device such as a switch, router or hub. Ideal for datacenters with existing network infrastructure, the HP 1Gb Ethernet Pass-Thru Module delivers sixteen internal 1Gb downlinks and sixteen external 1Gb RJ-45 copper uplinks, providing a 1:1 non-switched, non-blocking path between the server and the network. Designed to fit into a single I/O bay of the c-Class enclosure, the Ethernet Pass-Thru Module should be installed in pairs to provide redundant uplink paths to your network.
- Performance.
- Full Duplex 1G Ethernet only. Sixteen RJ-45 ports in a single bay form factor. 1:1 non blocking architecture. Wire speed.
- Management.
- No need for LAN management inside the enclosure. Power, temperature and status can be monitored by the Onboard Administrator. I2C communications support for iLO.
- Options.
- The Ethernet Pass-Thru Module is shipped as a single unit and should be ordered in quantities of two. 406740-B21 Qty.1 HP 1Gb Ethernet Pass-Through Module for c-Class BladeSystem. UE477E. Qty.1 HP CarePack Enhanced 3-year Warranty. UE603E. Qty.1 BladeSystem Enhanced Network Configuration Service.
The HP 1Gb Ethernet Pass-Thru Module for c-Class BladeSystem is designed for those customers desiring an unmanaged direct connection between each server blade within the enclosure and an external network device such as a switch, router or hub. Ideal for datacenters with existing network infrastructure, the HP 1Gb Ethernet Pass-Thru Module delivers sixteen internal 1Gb downlinks and sixteen external 1Gb RJ-45 copper uplinks, providing a 1:1 non-switched, non-blocking path between the server and the network. Designed to fit into a single I/O bay of the c-Class enclosure, the Ethernet Pass-Thru Module should be installed in pairs to provide redundant uplink paths to your network.
- Performance.
- Full Duplex 1G Ethernet only. Sixteen RJ-45 ports in a single bay form factor. 1:1 non blocking architecture. Wire speed.
- Management.
- No need for LAN management inside the enclosure. Power, temperature and status can be monitored by the Onboard Administrator. I2C communications support for iLO.
- Options.
- The Ethernet Pass-Thru Module is shipped as a single unit and should be ordered in quantities of two. 406740-B21 Qty.1 HP 1Gb Ethernet Pass-Through Module for c-Class BladeSystem. UE477E. Qty.1 HP CarePack Enhanced 3-year Warranty. UE603E. Qty.1 BladeSystem Enhanced Network Configuration Service.
