NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
100 Mbit/s
Ethernet LAN data rates
10,100 Mbit/s
Fiber optic connector
SFP
Connectivity technology
Wired
LED indicators
LAN, Power
Product colour
White
Housing material
Metal
Input voltage
24 V
Power consumption (typical)
3.5 W
Width
150 mm
Depth
100 mm
Height
30 mm
Axis T8606. Maximum data transfer rate: 100 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Fiber optic connector: SFP, Connectivity technology: Wired. LED indicators: LAN, Power, Product colour: White, Housing material: Metal. Input voltage: 24 V, Power consumption (typical): 3.5 W. Width: 150 mm, Depth: 100 mm, Height: 30 mm
| Estimate Gross Weight | 0.605 |
|---|---|
| Estimate Gross Weight | 0.605 |

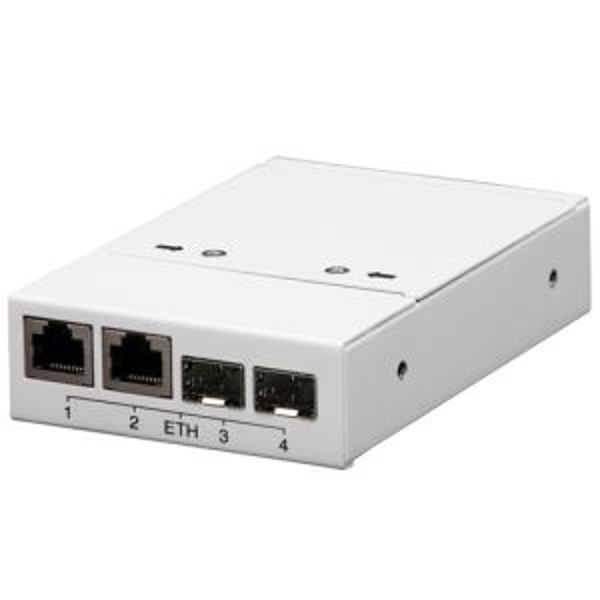

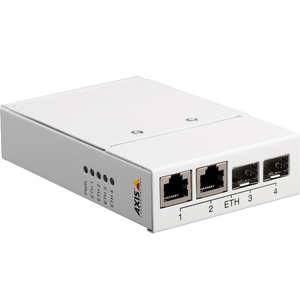

AXIS T8606 Media Converter Switch 24 V DC allows connection to the network using standard Ethernet or fiber optic cables that help lower the cost of installing the cameras over long distances. Perfect for city surveillance, airports and other long distance installations, AXIS T8606 is a DIN-mounted device that can convert an Ethernet signal to be used over optical fiber cable. Surveillance integrators in the field can also connect installation monitors and laptops (via the RJ45 connectors) to AXIS T8606 for camera maintenance and control. The media converter switch can be connected in a daisy chain network.
- 24 V DC IN; Compatible with Axis network products; Convert Ethernet to optical fiber; Support for 10/100 Mbps; Two SFP slots and two RJ45 ports
