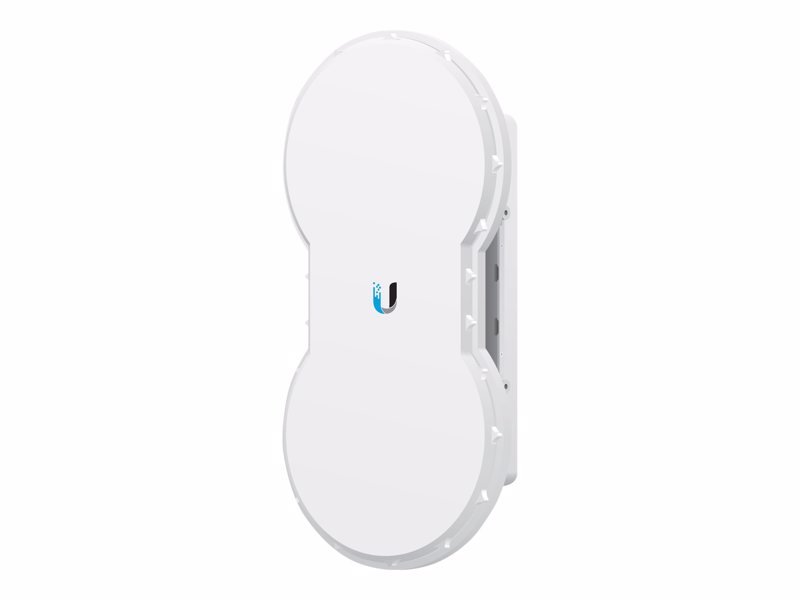

UbiQuiti AF-5U airFiber5 - 23 dBi - 5 GHz - Sector antenna
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Antenna gain level (max)
23 dBi
Frequency band
5 GHz
Modulation
1024-QAM,16-QAM,256-QAM,64-QAM,QPSK
Antenna type
Sector antenna
Mounting
Wall
Purpose
Outdoor
Power requirements
42-58VDC
Width
938.4 mm
Depth
468.4 mm
Height
281.4 mm
Quantity per pack
1 pc(s)
Ubiquiti Networks airFiber5. Antenna gain level (max): 23 dBi, Frequency band: 5 GHz, Modulation: 1024-QAM,16-QAM,256-QAM,64-QAM,QPSK. Antenna type: Sector antenna, Mounting: Wall, Purpose: Outdoor. Power requirements: 42-58VDC. Width: 938.4 mm, Depth: 468.4 mm, Height: 281.4 mm. Quantity per pack: 1 pc(s)
| Estimate Gross Weight | 16.0 |
|---|
The airFiber5 is purpose-built for outdoor, PtP bridging and carrier-class network backhauls.
Innovative Antenna Design
The high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments.
Revolutionary Performance
Surpassing conventional wired backhauls, the airFiber5 delivers real throughput of up to 1.2+ Gbps.
Long-Range Links: 100+ km
Designed to be a high-performance backhaul, the airFiber5 performs at a range of up to 100+ km.
Low-Latency Carrier Backhaul
The airFiber5 supports FDD (Frequency Division Duplexing) in full-duplex mode for <1 ms latency, resulting in increased efficiency for carrier-class network backhauls.
5 GHz Unlicensed Band
The airFiber5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy airFiber5 almost anywhere they choose (subject to local country regulations).
