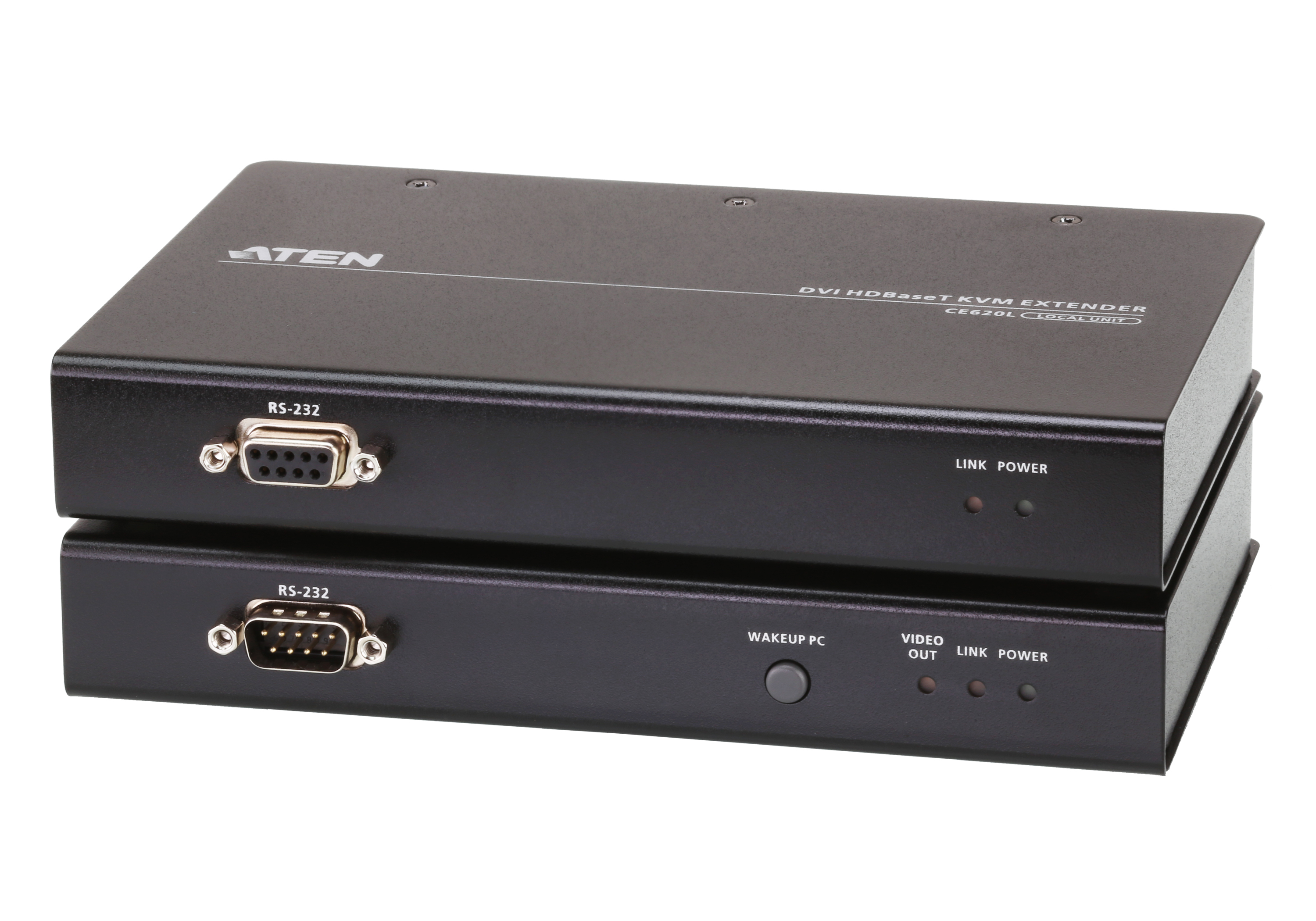

ATEN CE 620 - KVM / audio / serial / USB extender
ATEN USB 2.0 DVI Single Link over 1 CAT cable (100m) KVM extender with full USB2.0 support (up to 480Mbps) / HDBaseT2.0, transmitter and receiver, wired, 100 m, Cat5e,Cat6,Cat6a, black, metal
Brand: ATEN
SKU: CE620
£480.51
Price excl. VAT
£576.61
Price incl. VAT
Available – In Stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
100 m
Transmitter local video port type
DVI-D
Transmitter local video port
Y
Receiver local video port type
DVI-D
Power consumption (transmitter) (max)
3 W
Power consumption (receiver) (max)
5.6 W
Transmitter width
18.2 cm
Transmitter depth
12.3 cm
Transmitter height
2.87 cm
ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to 480Mbps) / HDBaseT2.0. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter local video port type: DVI-D. Receiver local video port type: DVI-D. Power consumption (transmitter) (max): 3 W, Power consumption (receiver) (max): 5.6 W. Transmitter width: 18.2 cm, Transmitter depth: 12.3 cm, Transmitter height: 2.87 cm
| Estimate Gross Weight | 2.194 |
|---|
https://www.aten.com/global/en/products/kvm/kvm-extenders/ce620/#.WJnLL2SLSw1

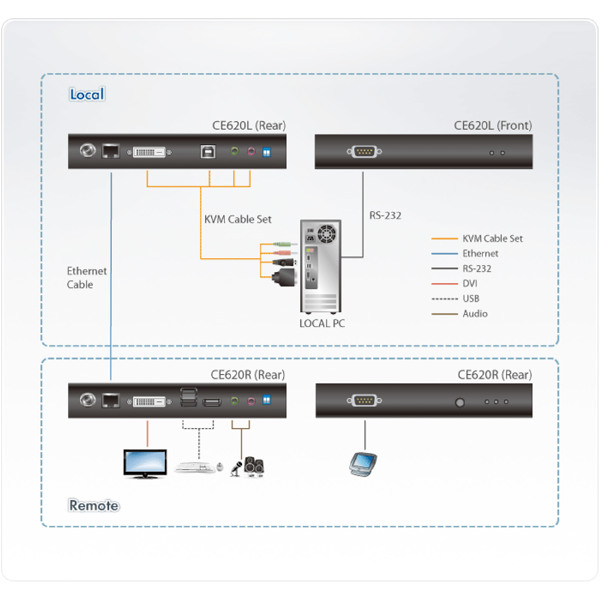

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
- HDBaseTâ„¢ 2.0 connectivity technology
- Supports 2-channel PCM digital audio — ensuring highquality audio transmissions
- Supports PC Wakeup function via pushbutton or hotkey
- Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)
- Note: The CE620 does not support HDCP.
- • Extends video, audio, USB and RS-232 signals via a single Ethernet cable
- • EDID Buffer for smooth power-up and the highest quality display
- • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Long distance superior video quality
- • HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
- • HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m
- Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach modes in a snap
- 3 USB 2.0 ports for keyboard/mouse and peripherals
