ATEN MasterView CS-1742 - KVM / audio / USB switch
Dual-View VGA KVM Switch with Audio and USB 2.0 Hub (KVM cables included)
Brand: ATEN
SKU: CS1742
£0.00
Price excl. VAT
£0.00
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
Product colour
White
Power consumption (typical)
1.25 W
Weight
1.6 kg
Package dimensions (WxDxH)
222.2 x 98.4 x 266.7 mm
Package width
222.2 mm
Package depth
98.4 mm
Aten CS1742. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Product colour: White. Power consumption (typical): 1.25 W. Weight: 1.6 kg. Package dimensions (WxDxH): 222.2 x 98.4 x 266.7 mm, Package width: 222.2 mm, Package depth: 98.4 mm
| Estimate Gross Weight | 1.79 |
|---|
https://www.aten.com/global/en/products/kvm/desktop-kvm-switches/cs1742/#.WgFy2XBwklQ

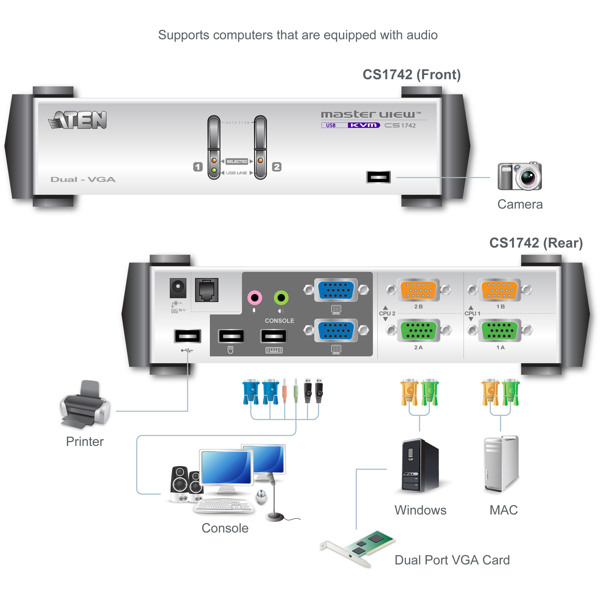

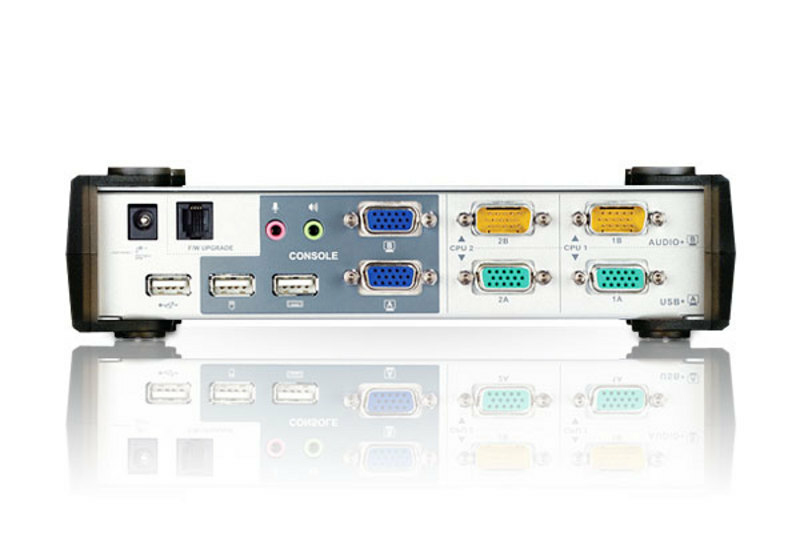

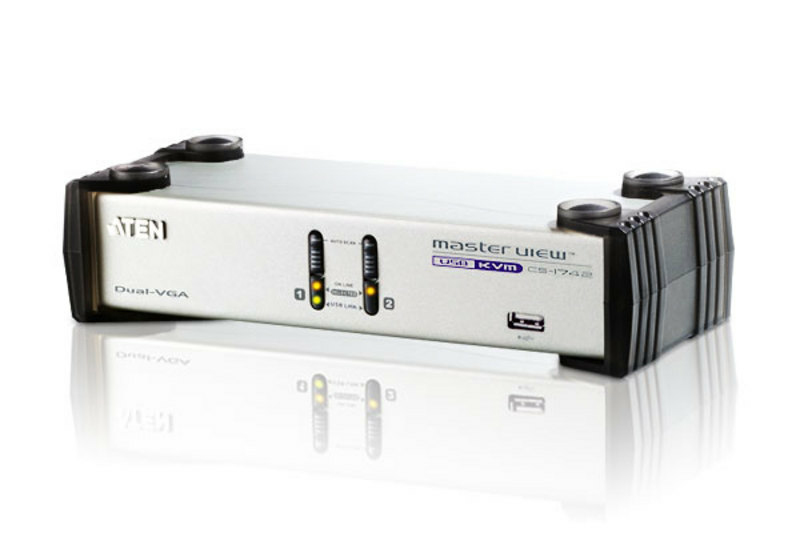

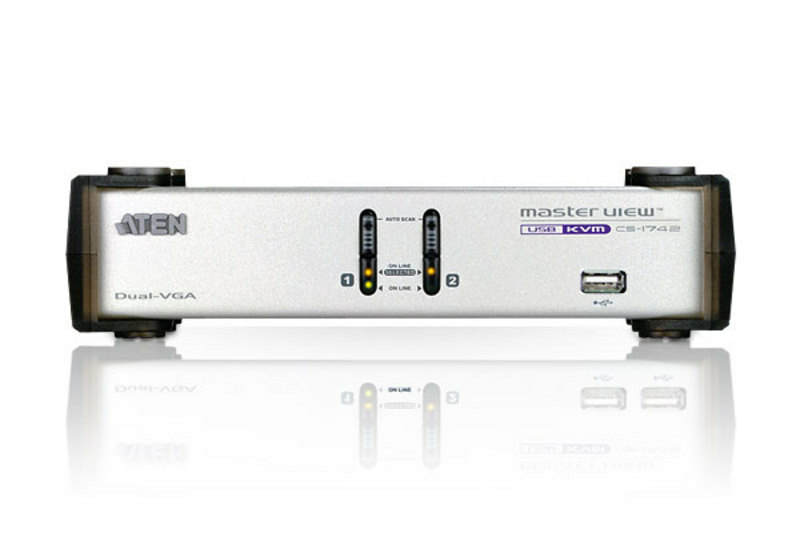

CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.
Features:
-Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
-2 port USB Hub built in
-Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
-With speaker and microphone support
-Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
-Buzzer On/Off via hotkey
-Keyboard and mouse emulation for error free booting
-Computer selection via front panel pushbuttons and hotkeys
-Superior video quality - up to 2048 x 1536; DDC2B
-Firmware upgradeable
-OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
-SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
1x 2-Port USB Dual-View KVMPâ„¢ Switch
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
2x Custom KVM Cable (VGA, Audio; 1.8m/6ft)
1x Firmware Upgrade Cable
1x User Instructions
CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.
Features:
-Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
-2 port USB Hub built in
-Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
-With speaker and microphone support
-Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
-Buzzer On/Off via hotkey
-Keyboard and mouse emulation for error free booting
-Computer selection via front panel pushbuttons and hotkeys
-Superior video quality - up to 2048 x 1536; DDC2B
-Firmware upgradeable
-OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
-SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
1x 2-Port USB Dual-View KVMPâ„¢ Switch
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
2x Custom KVM Cable (VGA, Audio; 1.8m/6ft)
1x Firmware Upgrade Cable
1x User Instructions
