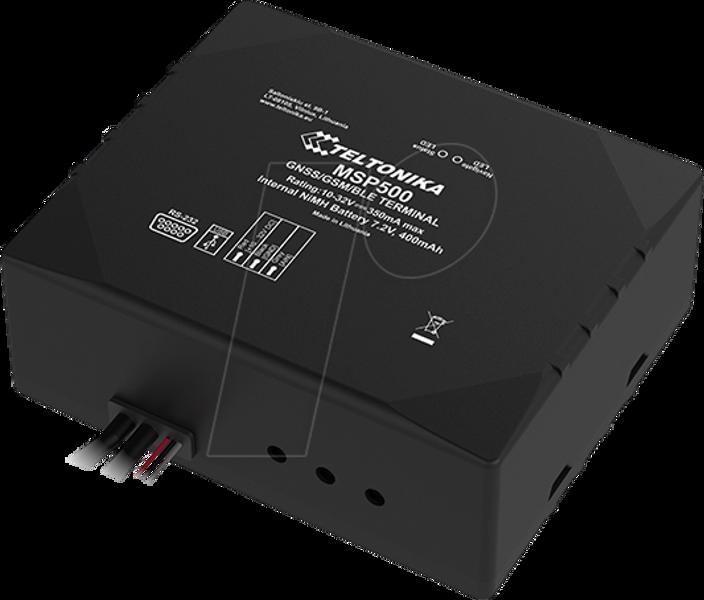

Teltonika MSP500 - GNSS/GSM/Bluetooth Tracker

Teltonika MSP500 - GNSS/GSM/Bluetooth Tracker with Speed ​​Limiting, MSP500 - GNSS/GSM/Bluetooth Tracker with Speed ​​Limiting
The main feature of the MSP500 is its speed limit function, activated by the internal relay. It ensures the safety of vehicles, cargo and most importantly drivers by limiting speed in different areas. Deliveries will no longer be delayed or interrupted due to accidents.
With the speed limiter, vehicle owners can avoid additional maintenance costs (e.g. tire wear) and carry out timely maintenance within the range of the planned costs. Fuel consumption is one of the components that make up the cost of delivery. Thanks to the speed limit function, there is no longer a possibility of overspeed, so fuel consumption does not increase due to incorrect driver behavior.
Some countries in the world (e.g. India, Kenya, Ethiopia, Philippines, Malaysia, Hong Kong, Canada) already have regulations for the mandatory use of speed limiters in commercial vehicles. This best practice is now spreading to more countries (e.g. UK, EU countries, Australia) that are also planning similar regulations.

Additional options for SIM cards and CarControl tariffs
VARIA offers you the opportunity to purchase a complete solution for your fleet management together with the tracker. The VARIA GPS CarControl tariffs are the ideal solution when it comes to locating mobile objects.
In addition to a route archive with driving and idle times, the Compact tariff also offers you detailed evaluations of operating times, geo zones with automatic alarms, as well as anti-theft protection and many other functions that will help you to make your fleet management easier and more efficient.
In addition to the functions of the Compact tariff, the Perfect tariff also offers an electronic logbook, which is forgery-proof and is guaranteed to meet all the requirements of the tax office.
If you choose one of these options, the VARIA technical team will install a 2G prepaid SIM card with a data volume of 400 MB in the tracker for you and carry out the initial setup of the VARIA GPS CarControl complete solution. When you receive the tracker, it will already be ready to use.
The VARIA GPS CarControl tariffs are valid for one year. If you want to continue using the service after one year, you can easily extend the tariff with us for another year.
Of course, you also have the option of using another fleet management solution of your choice. In this case, you can only book the required IoT prepaid SIM card for the tracker.
GNSS
-> GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
-> Receiver: 33 channels
-> Tracking Sensitivity: -165dBm
-> Accuracy: Hot start: Warm start: Cold start: <35 s
CELLULAR
-> Technology: GSM
-> 2G Bands: Quad-band 850/900/1800/1900 MHz
-> Data transfer: GPRS multi-slot class 12 (up to 240 kbps), GPRS mobile station class B
-> Data support: SMS (text/data)
POWER SUPPLY
-> Input voltage range: 10 - 30 V DC with overvoltage protection
-> Backup battery: 400 mAh Ni-MH battery 7.2 V (2.88 Wh)
-> Power consumption: At 12 V <1.4 mA (Ultra Deep Sleep); At 12V <3.8mA (deep sleep); At 12V <4.1mA (Online Deep Sleep); At 12V <8.6mA (GPS Sleep); At 12V <26.6mA (nominal)
BLUETOOTH
-> Specification: 4.0 + LE
-> Supported peripherals: temperature and humidity sensor, headset, OBDII dongle, Inateck barcode scanner, universal support for BLE sensors
INTERFACES
-> Analog input: 1
-> RS232: 1
-> Internal relay: 1
-> Internal buzzer: 1
-> Terminal block: 3 contacts
-> GNSS antenna: Internal high-gain antenna
-> GSM antenna: Internal high-gain antenna
-> USB: Type B
-> LED behavior: 2x status LED lights
-> SIM: Micro-SIM + eSIM option
-> Memory: 128 MB internal flash memory
OPERATING ENVIRONMENT
-> Operating temperature (without battery): -40°C to +85°C
-> Storage temperature (without battery): -40°C to +85°C
-> Operating Humidity: 5% to 95% non-condensing
-> Protection class: IP65
-> Charging temperature (battery): 0°C to +45°C
-> Discharge temperature (battery): -20°C to +60°C
-> Storage temperature (battery): -20°C to +45°C for 1 month; -20°C to +35°C for 6 months
