Ubiquiti NBE-5AC-GEN2 NanoBeam 5AC Gen 2 WLAN Bridge
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
450 Mbit/s
Maximum transfer distance
15000 m
Antenna gain level (max)
19 dBi
Frequency band
5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz
Modulation
16-QAM,64-QAM,256-QAM,BPSK,QPSK
Ethernet LAN
Y
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Security algorithms
WPA2
Ubiquiti Networks NanoBeam 5AC Gen 2. Maximum data transfer rate: 450 Mbit/s, Maximum transfer distance: 15000 m. Antenna gain level (max): 19 dBi. Frequency band: 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz, Modulation: 16-QAM,64-QAM,256-QAM,BPSK,QPSK. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: WPA2
| Estimate Gross Weight | 1.112 |
|---|
Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna ΓÇ£BeamΓÇ¥ Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam ACΓÇÖs excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
UbiquitiΓÇÖs airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation

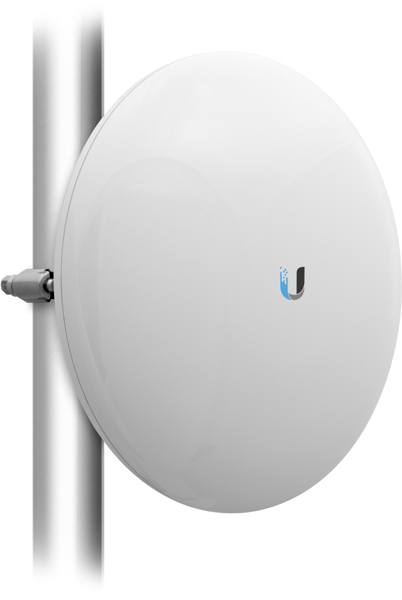

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS8
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
