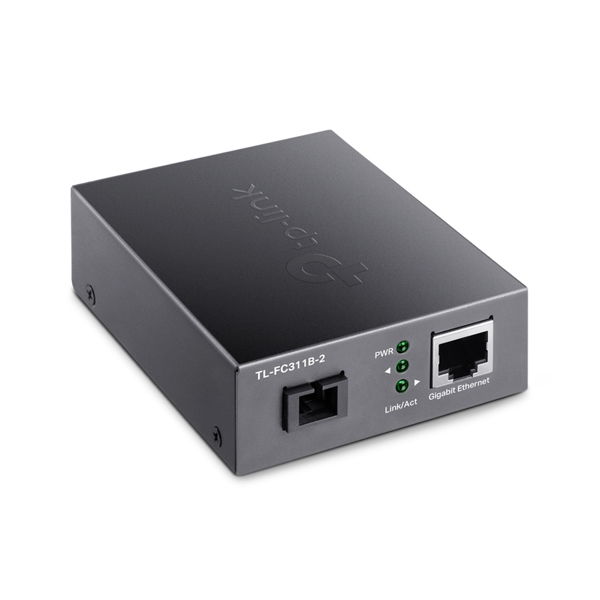

TP-LINK TL-FC311B-2 Gigabit WDM Media Converter - TL-FC311B-2

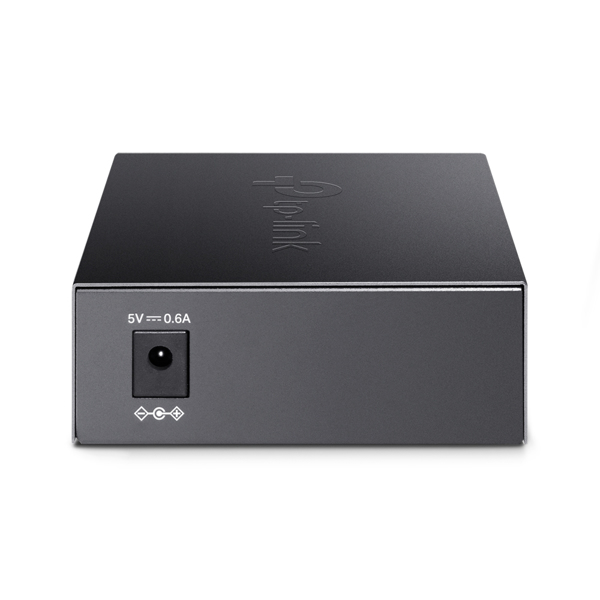

TP-LINK Gigabit WDM Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 100 m, Fiber cable diameters supported (core/cladding): 9/125 µm. Product colour: Black. Input voltage: 5 V, Input current: 0.6 A. Width: 94.5 mm, Depth: 73 mm, Height: 27 mm

https://www.tp-link.com/uk/business-networking/accessory/tl-fc311b-2/

What This Product Does
TL-FC311B-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works
TL-FC311B-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-2 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-2 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-2 is one of the products that can cooperate with TL-FC311B-2.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

• 1├ù 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 2 km
