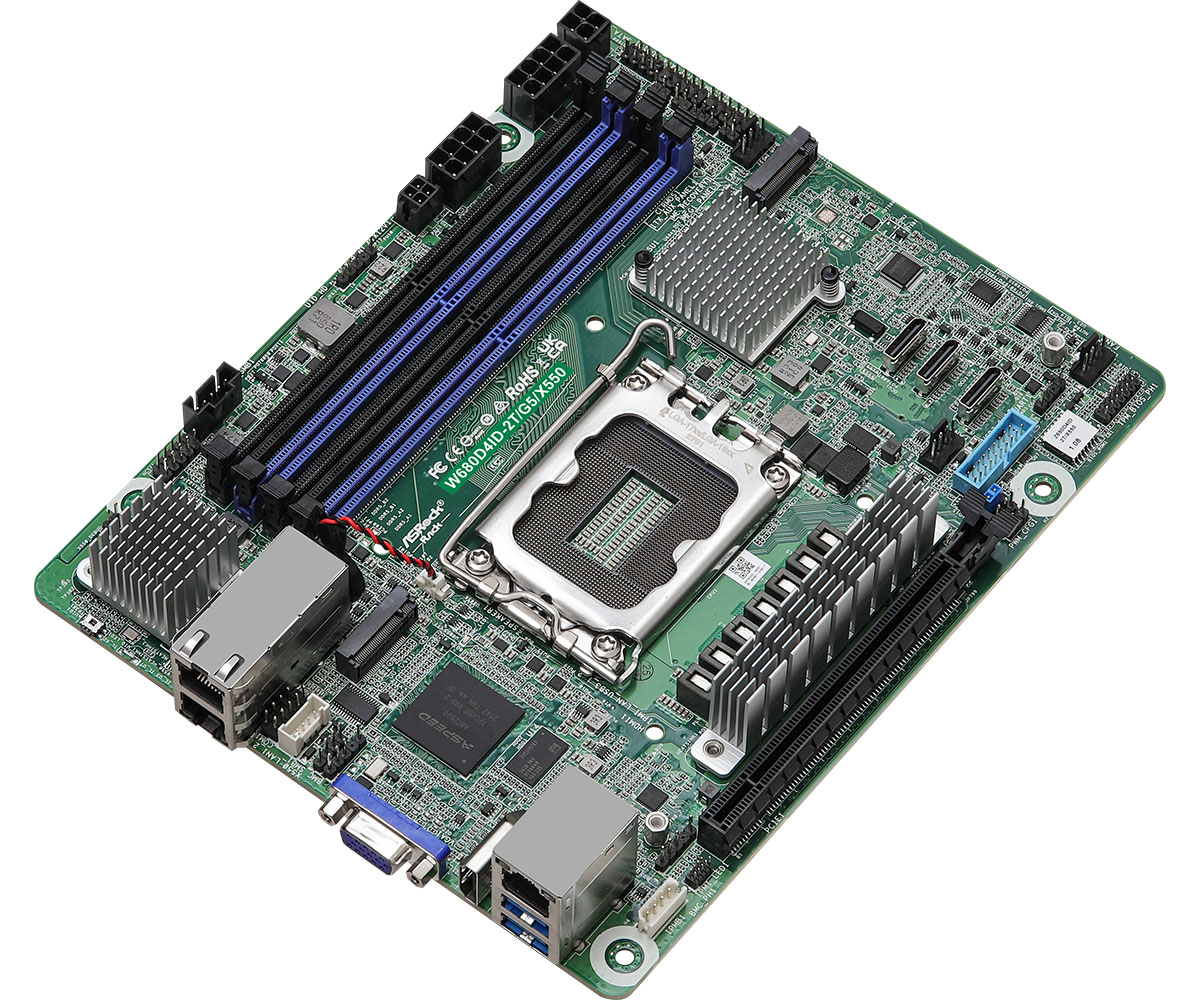

ASRock Rack W680D4ID-2T/G5/X550
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Type
Motherboard
CPU socket type
Intel Sockel 1700 (Core i)
Form factor
Mini-DTX
Memory type
DDR5
Memory build type
DIMM
On-Board-Controller
Gigabit-LAN; Lan; USB 3.2; USB 3.0
AV interfaces
HDMI; VGA
Bus type
PCI
Colour
Brown
Technical specifications
Universal interfaces
USB 3.0
ASRock MB W680D4ID-2T G5 X550 W680 LGA1700 Max32G DDR5 Deep mini-ITX Brown
ASRock Rack W680D4ID-2T/G5/X550 - Motherboard - deep mini-ITX - LGA1700 Socket - W680 Chipset - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics
Asrock W680D4ID-2T/G5/X550. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 48 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Graphics card family: ASPEED, Graphics card: AST2600. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel® X550
The ASRock Rack W680D4ID-2T/G5/X550 motherboard is designed to meet the demands of computing environments, offering a blend of performance, connectivity, and flexibility. With support for Intel Core processors and high-speed DDR5 memory, it delivers the processing power needed for intensive applications and multitasking. Dual 10 Gigabit Ethernet ports ensure fast and reliable network connections, critical for server management and data-intensive tasks. Expansion options are abundant, featuring PCIe slots of various generations and high-speed storage interfaces like M.2 and OCuLink, catering to a wide range of hardware configurations. Additionally, the motherboard is equipped with an ASPEED AST2600 graphics processor, providing dependable video output for server and workstation use. Comprehensive system management features, including IPMI 2.0 with iKVM support and ASRock Rack Instant Flash, offer advanced control and monitoring capabilities, ensuring systems run smoothly and efficiently. This motherboard is an ideal choice for professionals seeking a robust platform for servers, workstations, and computing solutions.
HDMI™ (High-Definition Multimedia Interface)
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
- Intel W680 chipset supports 12th/13th and 14th Generation Intel Core processors
- Dual 10 Gigabit Ethernet for superior network speeds
- Supports up to 5600 MHz DDR5 SDRAM for high-speed data processing
- PCIe 5.0 x16 slot for next-generation expansion cards
- ASPEED AST2600 graphics processor for reliable video output
- Deep mini-ITX (6.7" x 8.2")
- Supports Intel® Core™ 14th Gen, 13th & 12th Gen Intel® Core™ series processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM Memory
- 1 PCIe5.0 x16
- 1 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s), 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
- Supports 2 M.2 (PCIe4.0 x4)
- 8 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel X550
- Remote management (IPMI)
- Advanced connectivity
Equipped with dual 10 Gigabit Ethernet ports powered by Intel X550 and Realtek RTL8211F, this motherboard ensures high-speed network connectivity, essential for server environments and high-performance computing tasks. - Robust memory support
Supports up to 5600 MHz DDR5 SDRAM across 4 DIMM slots, enabling high-speed data processing and improved system performance. The motherboard accommodates both ECC and non-ECC unbuffered RAM, providing flexibility and reliability for various computing needs. - Versatile expansion options
Features a PCIe 5.0 x16 slot, two PCIe 4.0 x4 slots, and a PCIe 3.0 x4 slot, alongside multiple M.2 and OCuLink ports for extensive storage and expansion capabilities. This allows for a wide range of hardware upgrades and configurations. - Comprehensive storage solutions
With 3 OCuLink ports and 2 M.2 sockets, the motherboard offers a variety of high-speed storage interfaces, supporting Serial ATA-600 and PCIe 4.0, ideal for fast data access and storage flexibility. - Enhanced system management
Features like IPMI 2.0 with iKVM support, ASRock Rack Instant Flash, and comprehensive hardware monitoring options provide advanced control over system settings and health, ensuring stable and efficient operation.
