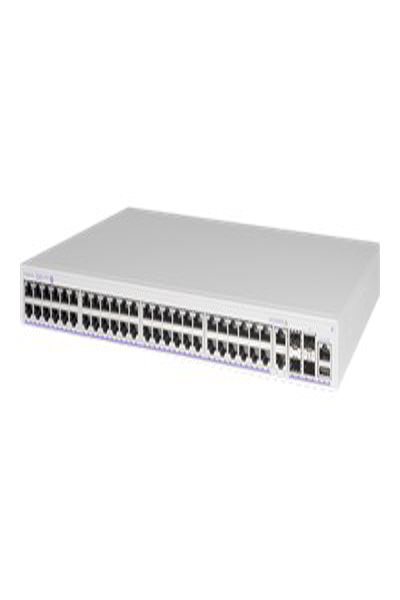

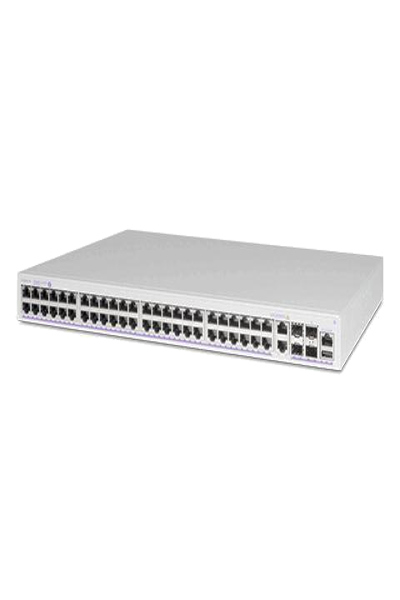

Alcatel Switch OS6360-P48X Layer3
Power over Ethernet - RJ-45 - Managed - Rack module
Brand: Alcatel
SKU: OS6360-P48X-EU
£2,901.31
Price excl. VAT
£3,481.57
Price incl. VAT
Available – In Stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Device Type
Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
46 x 10/100/1000 (PoE+) + 2 x 10/100/1000/2.5G (UPOE) + 2 x combo 10 Gigabit SFP+/RJ-45 + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
760 W
Performance
Switching ASIC capacity: 182 Gbps
Switching capacity (64-byte packet size): 271 Mpps
Capacity
Packet buffer size: 1.5 MB
MAC Address Table Size
16K entries
Jumbo Frame Support
9216 bytes
Max Units In A Stack
4
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, NTP, ICMP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS, XML
Encryption Algorithm
MD5, AES, PKI, ESP, HMAC
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Extensible Authentication Protocol (EAP)
Features
Flow control, auto-negotiation, BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Syslog support, port mirroring, sFlow, ACL support, QoS, DHCP server, MLD snooping, Virtual Chassis technology, UDLD, LACP support, LLDP support, DHCP relay, DHCP client, Energy Efficient Ethernet, MIB, MVRP, SPQ, NDP, CoS, sFlow v5, Loopback, 802.1x authentication, VoIP support, DDM, policy based routing, 1 fan, LLDP-MED, HOL blocking, UDP, DoS protection, WRR, port mapping, VLAN Tagging, RESTful APIs, PPP, WebView management, RPVST+, DNS support, MED, UDP support, LPS
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bt
Processor
X ARM: 800 MHz
RAM
1 GB
Flash Memory
1 GB
Status Indicators
Power, system, PoE, link/activity, virtual chassis
Expansion / Connectivity
Interfaces
48 x 1000Base-T RJ-45 PoE+
2 x 10GBase-X SFP+
2 x 10GBase-X SFP+ uplink
1 x console
1 x USB
2 x 2.5GBase-T RJ-45 UPOE
2 x 10GBase-T RJ-45
Power
Power Device
Internal power supply
Miscellaneous
MTBF
789,000 hours
Compliant Standards
C-Tick, BSMI, EN 61000-3-2, EN55022, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, EMC, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, IEC 60950-1, UL 60950-1 Second Edition, KCC, WEEE, ANATEL, UL-AR, EN 60825-1, AS/NZS 3548 Class A, CDRH, AS/NZS, EN 60825-2, EMI, VCCI Class A, EN 50581, EAC, ICT, EN 55024:2010, FCC CFR47 Part 15 B Class A, CU, IEC 62368-1, TS001, NOM-019-SCFI, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, ICES-003:2012 Issue 5 Class A, IEEE 802.3, UL-GS
Dimensions & Weight
Width
44 cm
Depth
30 cm
Height
4.4 cm
Weight
4.4 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
40 °C
Max Storage Temperature
85 °C
Ident
Manufacturer ID
OS6360-P48X-EU
EAN/UPC
3326744978304
Alcatel Lucent OmniSwitch OS6360-P48X - Switch - L3 - Switch - 1 Gbps - Power over Ethernet - RJ-45 - Managed - Rack module
https://www.al-enterprise.com/en/products/switches/omniswitch-6360
