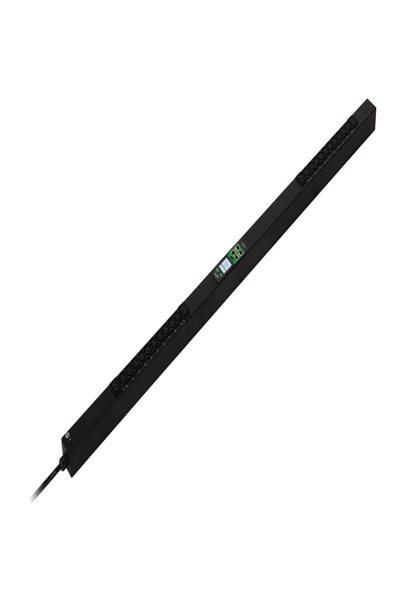

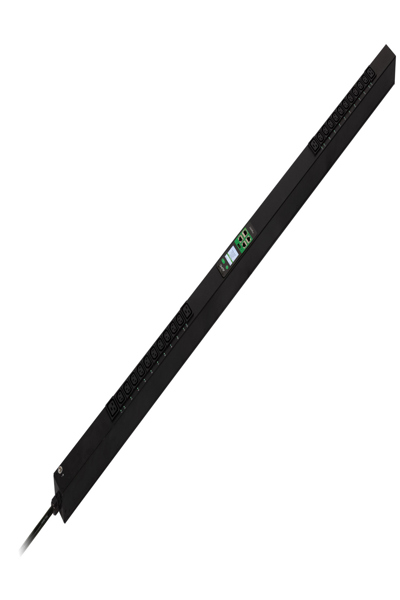

APC EasyPDU Switched Zero U 30 - (Offline) UPS - Rack module
IEC
Brand: APC
SKU: EPDU2232SX3620
£1,744.65
Price excl. VAT
£2,093.58
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
0U
Cord Length
2 m
Colour
Black
Power Device
Input Voltage
AC 400 V
Input Voltage Range
AC 200 - 240 / 346 - 415 V
Input Wiring
3-phase
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60309 3P+N+E
Power Output Connectors Details
30 x power IEC 60320 C13 - 230 V
6 x power IEC 60320 C19 - 230 V
Output Voltage
AC 230 V
Max Electric Current
32 A
Power Capacity
22 kW / 22080 VA
Circuit Protection
Circuit breaker
Networking
Remote Management Interface
Ethernet 10/100/1000, serial, USB
Remote Management Protocol
SNMP 1, CLI, HTTP, HTTPS, SNMP 2, SNMP 3, DHCP, IPv4, IPv6
Expansion / Connectivity
Interfaces
1 x management (Gigabit Ethernet) - RJ-45
1 x serial - RJ-45
1 x USB - 4 pin USB Type A
1 x sharing input - RJ-45
1 x sharing output - RJ-45
Expansion Slots
1 (total) / 0 (free) x Network Interface slot
Miscellaneous
Cables Included
Power cable - integrated - 2 m
Rack Mounting Kit
Included
Features
Tool-less mounting, vertical orientation, LCD display, Hydraulic-Magnetic breakers, 6 x 16A single pole magnetic breakers, steel enclosure
Compliant Standards
UKCA, REACH, EU RoHS, EN55035, EN 55032, EN55024, EMC, EN 62368-1, IEC 62368-1, TUV
Manufacturer Warranty
Service & Support
Limited warranty - replace or repair - 2 years
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
Dimensions & Weight
Width
5.6 cm
Depth
6.2 cm
Height
180 cm
Weight
8.75 kg
Dimensions & Weight (Shipping)
Shipping Width
17 cm
Shipping Depth
12.6 cm
Shipping Height
196 cm
Shipping Weight
10.55 kg
Ident
Manufacturer ID
EPDU2232SX3620
EAN/UPC
0731304761297
APC EasyPDU Switched Zero U 30 - (Offline) UPS - Rack module - IEC
