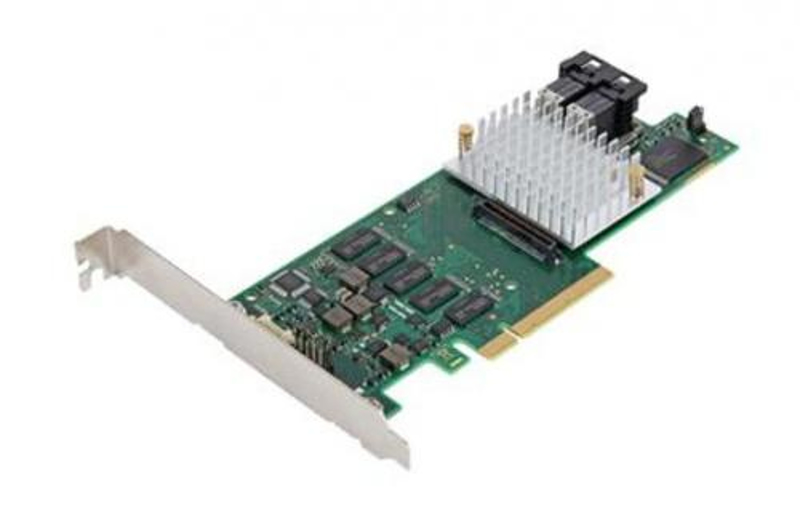

Fujitsu PSAS CP400i - Storage controller (RAID)
Fujitsu PSAS CP400i - Storage controller (RAID) - 8 Channel - SATA 6Gb/s / SAS 12Gb/s low profile - 12 Gbit/s - RAID 0, 1 - PCIe 3.0 x8 - for PRIMERGY CX2550 M5, CX2560 M5, RX2520 M5, RX2530 M5, RX2540 M5, RX4770 M4, TX2550 M5
Brand: Fujitsu Technology
SKU: S26361-F3842-L502
£0.00
Price excl. VAT
£0.00
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Supported storage drive interfaces
SAS, Serial ATA
Host interface
PCI Express x8
PCI Card form factor
Full-height (low-profile)
Fujitsu PSAS CP400i SAS Controller. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. PCI Card form factor: Full-height (low-profile)
| Estimate Gross Weight | 0.432 |
|---|
https://www.fujitsu.com
The SAS / SATA technology offers a performance improvement over traditional SCSI connections. Serial Attached SCSI (SAS) and Serial ATA (SATA) are point-to-point serial peripheral interfaces in which controllers are linked directly to disk drives. This technology supports full-duplex signal transmission up to 12Gb/s.
SAS devices can communicate with both SAS and SATA devices. A key difference between SAS and SATA devices is, that SAS devices can have two data ports, of which each resides in a different SAS domain. This enables complete failover redundancy. If one path fails, there is still communication along a separate and independent path.
PSAS CP400i
The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
The PSAS CP400i provides two x4 internal SFF8643 (Mini-SAS HD), enabling a low profile solution that can achieve over 1 million IOPs. The PSAS CP400i adapter is backwards compatible with previous SAS and PCI generations through automatic negotiation and provides SAS data transfer rates of 12, 6 and 3Gb/s per lane and SATA data transfer rates of 6 and 3Gb/s per lane.
There is also an order option with separate order code for LTO which is otherwise functionaly
identical.
The SAS / SATA technology offers a performance improvement over traditional SCSI connections. Serial Attached SCSI (SAS) and Serial ATA (SATA) are point-to-point serial peripheral interfaces in which controllers are linked directly to disk drives. This technology supports full-duplex signal transmission up to 12Gb/s.
SAS devices can communicate with both SAS and SATA devices. A key difference between SAS and SATA devices is, that SAS devices can have two data ports, of which each resides in a different SAS domain. This enables complete failover redundancy. If one path fails, there is still communication along a separate and independent path.
PSAS CP400i
The PSAS CP400i, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal storage. Performance is based on the LSI SAS3008 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
The PSAS CP400i provides two x4 internal SFF8643 (Mini-SAS HD), enabling a low profile solution that can achieve over 1 million IOPs. The PSAS CP400i adapter is backwards compatible with previous SAS and PCI generations through automatic negotiation and provides SAS data transfer rates of 12, 6 and 3Gb/s per lane and SATA data transfer rates of 6 and 3Gb/s per lane.
There is also an order option with separate order code for LTO which is otherwise functionaly
identical.
