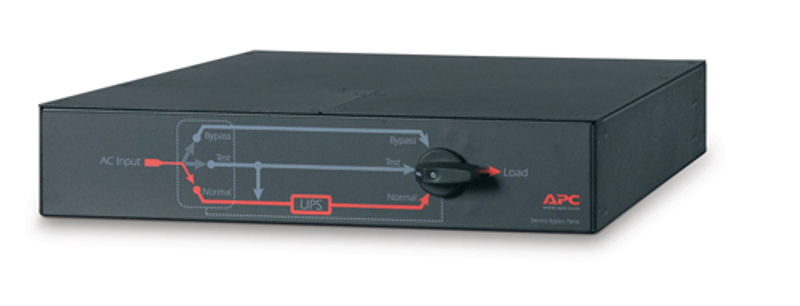

APC Service Bypass Panel - 200/208/240V - Black - NEMA L6-30P - 2x NEMA L6-20R 2x NEMA L6-30R - 3.05 m - CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 - 50 - 60 Hz
30A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output
Brand: APC
SKU: SBP5000RMT2U
£0.00
Price excl. VAT
£0.00
Price incl. VAT
Out of stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Product colour
Black
Input connection type
NEMA L6-30P
Output connections

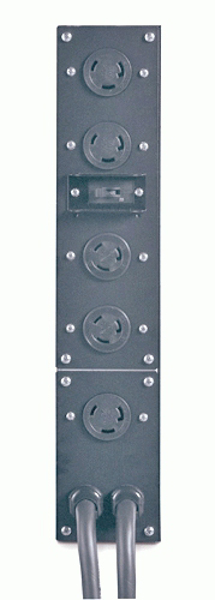

2x NEMA L6-20R 2x NEMA L6-30R
Cable length
3.05 m
Certification
CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778
AC input frequency
50 - 60 Hz
Load capacity
5000 VA
Maximum input current per phase
24 A
Dimensions (WxDxH)
432 x 660 x 89 mm
Weight
13.6 kg
APC Service Bypass Panel - 200/208/240V. Product colour: Black. Input connection type: NEMA L6-30P, Output connections: 2x NEMA L6-20R 2x NEMA L6-30R. Cable length: 3.05 m, Certification: CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778. AC input frequency: 50 - 60 Hz, Load capacity: 5000 VA, Maximum input current per phase: 24 A. Dimensions (WxDxH): 432 x 660 x 89 mm, Weight: 13.6 kg
| Warranty | GARANTIE SIEHE AGB, 1 JAHR GEW |
|---|---|
| Estimate Gross Weight | 24.5 |
https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SBP5000RMT2U&tab=features
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
