NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
1000 Mbit/s
Cabling technology
1000Base-TX
Compliance industry standards
IEEE 802.3, IEEE 802.3u
Safety
EN 60950 (TUV), UL 60950 (cULus), CE, EN 60825
Power consumption (typical)
6 W
Weight
270 g
Dimensions (WxDxH)
105 x 95 x 25 mm
Interface
SFP
Power requirements
100-120/220-240V AC, 50/60Hz
Allied Telesis 1000Base-T, SFP Standalone Media Converter. Maximum data transfer rate: 1000 Mbit/s, Cabling technology: 1000Base-TX. Compliance industry standards: IEEE 802.3, IEEE 802.3u, Safety: EN 60950 (TUV), UL 60950 (cULus), CE, EN 60825. Power consumption (typical): 6 W. Weight: 270 g. Dimensions (WxDxH): 105 x 95 x 25 mm, Interface: SFP, Power requirements: 100-120/220-240V AC, 50/60Hz

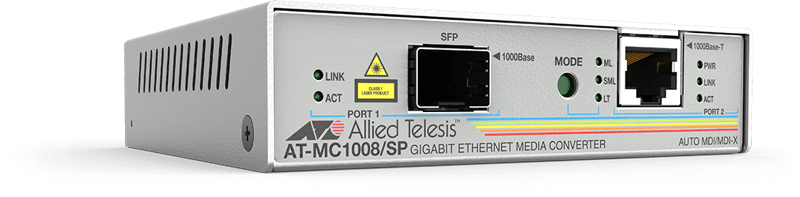

The MC1008/SP Ethernet media converter is designed to extend the distance of your network by interconnecting LAN devices that are physically separated by large distances. This media converter has the functionality to connect any managed/unmanaged 1000Mbps (1Gbps) switch or hub using standard 1000T RJ45 connection and converts the signal to 1000Base optical via an SFP port. The pluggable optics feature allows for flexible network configurations of reach whilst reducing the number of products for sparing and inventory.
The AT-MC1008/SP media converter features a 1000T twisted pair port and an SFP port. The twisted pair port has an RJ45 connector and a maximum operating distance of 100 meters (328 feet). The fiber optic port has an SFP slot and a maximum operating distance dependent on the SFP.
Although the provisioning of Gigabit Ethernet connections is becoming relatively inexpensive, thanks in part to the availability of lower-cost copper Gigabit network adapters, the distance limitations of copper cabling make fiber segments a necessity in most networks. Small, comparatively inexpensive copper to fiber Gigabit Ethernet media converters present a simple and very cost-effective way of connecting Gigabit Ethernet LANs over extended distances.
Each small media converter is powered by an external power supply unit for use in standalone applications. Where multiple media converters are used, up to 12 standalone devices can be inserted into a low-cost AT-MCR12 rackmount chassis, allowing all the converters to be powered by a single internal power supply. In critical applications, a second load sharing internal power supply can be installed into the rackmount chassis.
- System and port LEDs
- Auto-sense MDI/MDI-X
- Full-duplex operation
- Cost effective migration from Gigabit copper to Gigabit fiber
- MissingLink and Smart MissingLink troubleshooting features
- External AC power adapter
- Standalone, wall or rack-mountable
