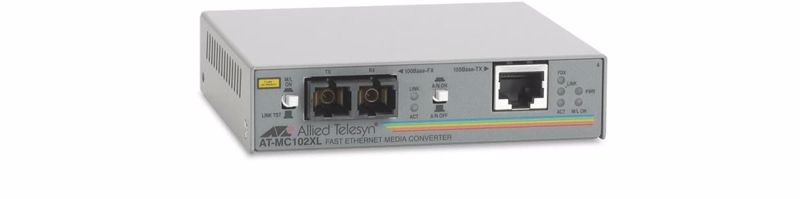

Allied Telesis AT MC102XL - Fiber media converter
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
100 Mbit/s
Cabling technology
UTP & FO
Connectivity technology
Wired
Safety
UL-Cul, CSA/CSA, NRTL, TUV, CE
Power consumption (typical)
6 W
Weight
294 g
Allied Telesis 100TX to 100FX (SC) standalone media converter. Maximum data transfer rate: 100 Mbit/s, Cabling technology: UTP & FO. Connectivity technology: Wired. Safety: UL-Cul, CSA/CSA, NRTL, TUV, CE. Power consumption (typical): 6 W. Weight: 294g
The Allied Telesis' range of Fast Ethernet Media converters provides a complete series of conversion devices, allowing users to extend the size of UTP and multi-mode fiber networks with the use of single-mode fiber cabling. Supporting SC-connected single-mode fiber, these converters can be used to extend networks up to a distance of 2km.
All these media converters feature an internal MDI/MDIX switch, allowing the converter to be connected to PC, hub or switch with a simple UTP cable. The media converters also allow the installer to test the integrity of fiber connection, by forcing the converters to communicate over the fiber cable. This Link Test feature allows installers to check for cable faults without the need for expensive fiber optic test equipment.
- Extend network distances by adding fiber only where it is needed
- Add new devices without replacing costly cable
- Keep pace with changing technology
- Integrate high-bandwidth devices into the network
- Converts Copper Fast Ethernet to Multimode Fiber
- Operates under all traffic loads
- Fan Less design
- Auto MDI/MIDX Copper Port
- Missing Link Support
- Transparent to Jumbo packets and VLAN tagged packets
- Fiber Link Test Function
- Industry standard Fiber SC connector
| Estimate Gross Weight | 0.779 |
|---|
Fibre connections
The Allied Telesyn range of Fast Ethernet Media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fibre cabling. Supporting both SC and ST fibre connectors, these converters can be used to extend networks with up to 2km of fibre.
Auto-negotiation and MissingLinkΓäó
The MissingLinkΓäó feature enables the fibre optic ports on the media converter to pass the ΓÇÿLinkΓÇÖ status of their connections to each
other. When the media converter detects a problem with one of the ports, such as the loss of connection to an end-node, the media converter shuts down the connection to the other port, thus notifying the node that the connection has been lost.
Simple installation
Both media converters feature an internal MDI/MDI-X switch, allowing the converter to be connected to either a PC, hub or switch
with a simple UTP cable.The media converters also allow the installer to test the integrity of fibre connection, by forcing the converters to communicate over the fibre cable.This ΓÇÿLink TestΓÇÖ feature allows installers to check for cable faults without the need for expensive fibre-optic test equipment.
Standalone or rackmounted
Each small media converter is powered by an external power supply unit for use in standalone applications.Where multiple media converters are being used, up to 12 standalone devices can be inserted into a low
cost rackmount chassis, allowing all the converters to be powered by a single internal power supply. In critical applications, a second
load sharing internal power supply can be installed into the rackmount chassis.
