NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
100 Mbit/s
Cabling technology
100TX/100FX
Connectivity technology
Wired
Safety
UL-Cul, CSA/CSA, NRTL, TUV, CE
Power consumption (typical)
6 W
Weight
294 g
Allied Telesis AT-MC102XL. Maximum data transfer rate: 100 Mbit/s, Cabling technology: 100TX/100FX. Connectivity technology: Wired. Safety: UL-Cul, CSA/CSA, NRTL, TUV, CE. Power consumption (typical): 6 W. Weight: 294 g
The Allied Telesis' range of Fast Ethernet Media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fiber cabling. Supporting all major fiber connectors, with support for both multi and single mode fiber, these converters can be used to extend networks with up to 2km of fiber.

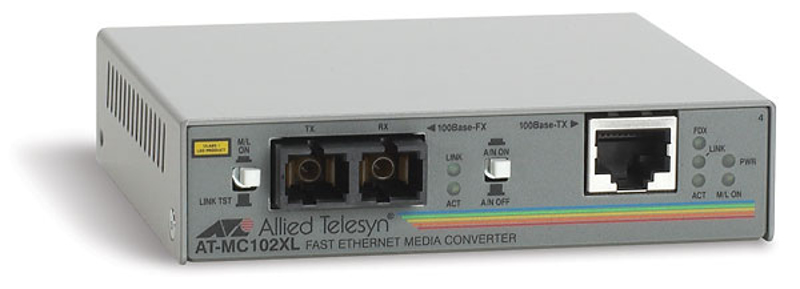

This is a CentreCOM TX to FX media converter with SC fiber connectors.
Fibre connections
The Allied Telesyn range of Fast Ethernet Media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fibre cabling. Supporting both SC and ST fibre connectors, these converters can be used to extend networks with up to 2km of fibre.
Auto-negotiation and MissingLink™
The MissingLink™ feature enables the fibre optic ports on the media converter to pass the ‘Link’ status of their connections to each
other. When the media converter detects a problem with one of the ports, such as the loss of connection to an end-node, the media converter shuts down the connection to the other port, thus notifying the node that the connection has been lost.
Simple installation
Both media converters feature an internal MDI/MDI-X switch, allowing the converter to be connected to either a PC, hub or switch
with a simple UTP cable.The media converters also allow the installer to test the integrity of fibre connection, by forcing the converters to communicate over the fibre cable.This ‘Link Test’ feature allows installers to check for cable faults without the need for expensive fibre-optic test equipment.
Standalone or rackmounted
Each small media converter is powered by an external power supply unit for use in standalone applications.Where multiple media converters are being used, up to 12 standalone devices can be inserted into a low
cost rackmount chassis, allowing all the converters to be powered by a single internal power supply. In critical applications, a second
load sharing internal power supply can be installed into the rackmount chassis.
- Extend network distances by adding fiber only where it is needed
- Add new devices without replacing costly cable
- Keep pace with changing technology
- Integrate high-bandwidth devices into the network
- Converts Copper Fast Ethernet to Multimode Fiber
- Operates under all traffic loads
- Fan Less design
- Auto MDI/MIDX Copper Port
- Missing Link Support
- Transparent to Jumbo packets and VLAN tagged packets
- Fiber Link Test Function
- Industry standard Fiber SC connector
Our media converters allow you to connect disparate cable types in your network. Media conversion offers you the ability to:
-Extend network distances by adding fiber only where it is needed.
-Add new devices without replacing costly cable.
-Keep pace with changing technology.
-Integrate high-bandwidth devices into the network.
