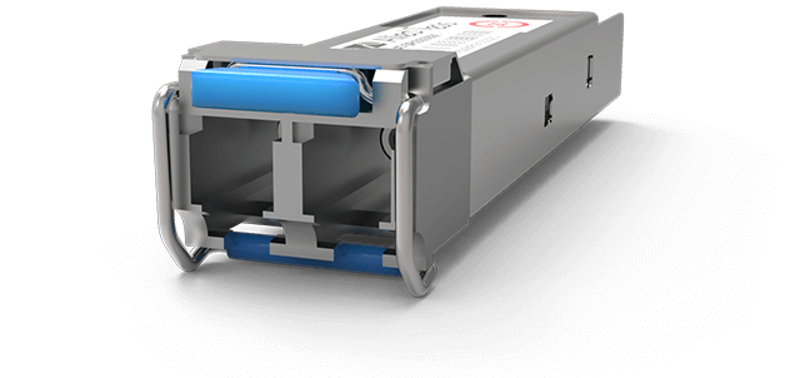

Allied Telesis AT SP10LRA/I - SFP+ 10 GigE module
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Product colour
Silver
Housing material
Metal
Number of products included
1 pc(s)
Allied Telesis AT-SP10LRA/I. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Metal. Number of products included: 1 pc(s)
The SP10LRa/I is a hot pluggable 10Gbps small form factor transceiver module with industrial temperature rating, -40°C to 85°C (-40°F to 185°F). It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.
10 Gigabit Small Form-Factor Pluggable Modules
The Allied Telesis SP10 Series offers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise and service provider transport applications. These industry-standard hot-swappable devices simply plug into the Ethernet SFP+ port on all SFP+-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.
Compatibility
Allied Telesis SP10 Series 10 Gigabit SFP+ modules are supported on all Allied Telesis devices with SFP+ uplink connections.
Options
The SP10 Series offers short-haul and long-haul solutions. From the inexpensive Allied Telesis SP10SR to the far-reaching Allied Telesis SP10ZR80/I, the network can be extended to meet any performance needs.
Interoperability
The SP10 Series SFP+ modules fully comply with industry-standard networking regulations. This allows the SP10 Series to be used with any networking equipment which complies with industry standards.
BiDi transceivers
Using an SFP BiDi transceiver can upgrade transmission capacity on a typical network—without installing new fibers—by utilizing a single fiber for both the send and receive signals.
Applications
The Allied Telesis 10G Long Reach Multimode (LRM) optic is designed to transmit and receive optical data over a legacy OM1 multi-mode fiber link up to 220m. This makes it ideal for high-speed storage area networks, computer cluster cross-connect and custom high-speed data pipes.
The extended temperature optics offer a wide operating temperature range of -40C to 85C, allowing deployment in even the harshest industrial environments.
- 10Gbps data rate
- Maximum data rate of 10.3Gbps
- BiDi options available
- Compact size
- Flexible architecture
- Hot-swappable
- RoHS compliant
- Compliant to SFP+ Electrical MSA SFF-8431
- Compliant to SFF-8472 MSA
- Lower power consumption < 1 Watt
- Digital diagnostics monitoring (DDM)
| Estimate Gross Weight | 0.04 |
|---|
10 Gigabit Small Form-Factor Pluggable Modules
The Allied Telesis SP10 Series offers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise and service provider transport applications. These industry-standard hot-swappable devices simply plug into the Ethernet SFP+ port on all SFP+-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.
Compatibility
Allied Telesis SP10 Series 10 Gigabit SFP+ modules are supported on all Allied Telesis devices with SFP+ uplink connections.
Options
The SP10 Series offers short-haul and long-haul solutions. From the inexpensive Allied Telesis SP10SR to the far-reaching Allied Telesis SP10ZR80/I, the network can be extended to meet any performance needs.
Interoperability
The SP10 Series SFP+ modules fully comply with industry-standard networking regulations. This allows the SP10 Series to be used with any networking equipment which complies with industry standards.
BiDi transceivers
Using an SFP BiDi transceiver can upgrade transmission capacity on a typical networkΓÇöwithout installing new fibersΓÇöby utilizing a single fiber for both the send and receive signals.
Applications
The Allied Telesis 10G Long Reach Multimode (LRM) optic is designed to transmit and receive optical data over a legacy OM1 multi-mode fiber link up to 220m. This makes it ideal for high-speed storage area networks, computer cluster cross-connect and custom high-speed data pipes.
The extended temperature optics offer a wide operating temperature range of -40C to 85C, allowing deployment in even the harshest industrial environments.
- 10Gbps data rate
- Maximum data rate of 10.3Gbps
- BiDi options available
- Compact size
- Flexible architecture
- Hot-swappable
- RoHS compliant
- Compliant to SFP+ Electrical MSA SFF-8431
- Compliant to SFF-8472 MSA
- Lower power consumption < 1 Watt
- Digital diagnostics monitoring (DDM)
