NOTE: The information below is provided for your convenience only, accuracy of specifications cannot be guaranteed. But if necessary, please verify with us before purchasing. Data provided by 1 World Sync
Cisco Secure Firewall 3100 Series performance and capabilities, running on Firewall Threat Defense (FTD) software
|
Features |
3110 |
3120 |
3130 |
3140 |
|
Throughput: FW + AVC (1024B) |
17.0 Gbps |
21.0 Gbps |
38.0 Gbps |
45.0 Gbps |
|
Throughput: FW + AVC + IPS (1024B) |
17.0 Gbps |
21.0 Gbps |
38.0 Gbps |
45.0 Gbps |
|
Maximum concurrent sessions, with AVC |
2 million |
4 million |
6 million |
10 million |
|
Maximum new connections per second, with AVC |
130,000 |
170,000 |
240,000 |
300,000 |
|
TLS1 |
4.8 Gbps |
6.7 Gbps |
9.1 Gbps |
11.5 Gbps |
|
Throughput: IPS (1024B) |
17.0 Gbps |
21.0 Gbps |
38.0 Gbps |
45.0 Gbps |
|
IPSec VPN Throughput |
8 Gbps |
10 Gbps |
17.8 Gbps |
22.4 Gbps |
|
Projected IPSec VPN Throughput |
11.0 Gbps |
13.5 Gbps |
33.0 Gbps |
39.4 Gbps |
|
Maximum VPN Peers |
3,000 |
6,000 |
15,000 |
20,000 |
|
Local On-device Management |
Yes |
Yes |
Yes |
Yes |
|
Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed by the Firewall Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
|||
|
Application Visibility and Control (AVC) |
Standard, supporting more than 4000 applications, as well as geolocations, users, and websites |
|||
|
AVC: OpenAppID support for custom, open source, application detectors |
Standard |
|||
|
Cisco Security Intelligence |
Standard, with IP, URL, and DNS threat intelligence |
|||
|
Cisco Secure IPS |
Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
|||
|
Cisco Malware Defense |
Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco Secure Endpoint is also optionally available |
|||
|
Cisco Secure Malware Analytics |
Available |
|||
|
URL Filtering: number of categories |
More than 80 |
|||
|
URL Filtering: number of URLs categorized |
More than 280 million |
|||
|
Automated threat feed and IPS signature updates |
Yes: class-leading Collective Security Intelligence (CSI) from the Cisco Talos Group (https://www.cisco.com/c/en/us/products/security/talos.html) |
|||
|
Third-party and open-source ecosystem |
Open API for integrations with third-party products; Snort® and OpenAppID community resources for new and specific threats |
|||
|
High availability and clustering |
Active/active, Active/standby. Cisco Secure Firewall 3100 Series allows clustering of up to 8 chassis |
|||
|
Cisco Trust Anchor Technologies |
Secure Firewall 3100 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details |
|||
ASA Performance and capabilities on Secure Firewall 3100 appliances
|
Features |
3110 |
3120 |
3130 |
3140 |
|
Stateful inspection firewall throughput1 |
18.0 Gbps |
22.0 Gbps |
42.0 Gbps |
49.0 Gbps |
|
Stateful inspection firewall throughput (multiprotocol)2 |
15.0 Gbps |
17.0 Gbps |
39.0 Gbps |
43.0 Gbps |
|
Concurrent firewall connections |
2 million |
4 million |
6 million |
10 million |
|
New connections per second |
300,000 |
500,000 |
875,000 |
1,100,000 |
|
IPsec VPN throughput |
8 Gbps |
10 Gbps |
14 Gbps |
17 Gbps |
|
Projected IPsec VPN throughput |
12.0 Gbps |
15.4 Gbps |
28.0 Gbps |
33.0 Gbps |
|
Maximum VPN Peers |
3,000 |
7,000 |
15,000 |
20,000 |
|
Security contexts (included; maximum) |
2; 100 |
2; 100 |
2; 100 |
2; 100 |
|
High availability |
Active/active and active/ standby |
Active/active and active/ standby |
Active/active and active/ standby |
Active/active and active/ standby |
|
Clustering |
8 |
8 |
8 |
8 |
|
Scalability |
VPN Load Balancing |
|||
|
Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator |
|||
|
Adaptive Security Device Manager |
Web-based, local management for small-scale deployments |
|||
Hardware specifications
Table 4. Cisco Secure Firewall 3100 Series hardware specifications
|
Features |
Cisco Secure Firewall Model |
|||
|
3110 |
3120 |
3130 |
3140 |
|
|
Dimensions (H x W x D) |
1.75 x 17 x 20 in. (4.4 x 43.3 x 50.8 cm) |
1.75 x 17 x 20 in. (4.4 x 43.3 x 50.8 cm) |
1.75 x 17 x 20 in. (4.4 x 43.3 x 50.8 cm) |
1.75 x 17 x 20 in. (4.4 x 43.3 x 50.8 cm) |
|
Form factor (rack units) |
1RU |
1RU |
1RU |
1RU |
|
Integrated I/O |
8 x 10M/100M/ 1GBASE-T Ethernet interfaces (RJ- 45), 8 x 1/10 Gigabit (SFP) Ethernet interfaces |
8 x 10M/100M/ 1GBASE-T Ethernet interfaces (RJ- 45), 8 x 1/10 Gigabit (SFP) Ethernet interfaces |
8 x 10M/100M/ 1GBASE-T Ethernet interfaces (RJ- 45), 8 x 1/10/25 Gigabit (SFP) Ethernet interfaces |
8 x 10M/100M/ 1GBASE-T Ethernet interfaces (RJ- 45), 8 x 1/10/25 Gigabit (SFP) Ethernet interfaces |
|
Network modules |
8 x 1/10G Options |
8 x 1/10G Options |
8 x 1/10/25G, 4 x 40G Options, |
8 x 1/10/25G, 4 x 40G Options |
|
Maximum number of interfaces |
Up to 24 total Ethernet ports, (8x1G RJ-45, 8x1/10G SFP, and network module) |
Up to 24 total Ethernet ports, (8x1G RJ-45, 8x1/10G SFP, and network module) |
Up to 24 total Ethernet ports (8x1G RJ-45, 8x1/10/25G SFP, and network module) |
Up to 24 total Ethernet ports (8x1G RJ-45, 8x1/10/25G SFP, and network module) |
|
Integrated network management ports |
1 x 1/10G SFP |
1 x 1/10G SFP |
1 x 1/10G SFP |
1 x 1/10G SFP |
|
Serial port |
1 x RJ-45 console |
1 x RJ-45 console |
1 x RJ-45 console |
1 x RJ-45 console |
|
USB |
1 x USB 3.0 Type-A (900mA) |
1 x USB 3.0 Type-A (900mA) |
1 x USB 3.0 Type-A (900mA) |
1 x USB 3.0 Type-A (900mA) |
|
Storage |
1x 900 GB, 1x spare slot |
1x 900 GB, 1x spare slot |
1x 900 GB, 1x spare slot |
1x 900 GB, 1x spare slot |
|
Power supply configuration |
Single 400W AC, Dual 400W AC optional. Single/Dual 400W DC optional1 |
Single 400W AC, Dual 400W AC optional. Single/Dual 400W DC optional1 |
Dual 400W AC. Single/dual 400W DC optional1 |
Dual 400W AC. Single/dual 400W DC optional1 |
|
AC input voltage |
100 to 240V AC |
100 to 240V AC |
100 to 240V AC |
100 to 240V AC |
|
AC maximum input current |
< 6A at 100V |
< 6A at 100V |
< 6A at 100V |
< 6A at 100V |
|
AC maximum output power |
400W |
400W |
400W |
400W |
|
AC frequency |
50 to 60 Hz |
50 to 60 Hz |
50 to 60 Hz |
50 to 60 Hz |
|
AC efficiency |
>89% at 50% load |
>89% at 50% load |
>89% at 50% load |
>89% at 50% load |
|
DC input voltage |
-48V to -60VDC |
-48V to -60VDC |
-48V to -60VDC |
-48V to -60VDC |
|
DC maximum input current |
< 12.5A at -48V |
< 12.5A at -48V |
< 12.5A at -48V |
< 12.5A at -48V |
|
DC maximum output power |
400W |
400W |
400W |
400W |
|
DC efficiency |
>88% at 50% load |
>88% at 50% load |
>88% at 50% load |
>88% at 50% load |
|
Redundancy |
1+1 AC or DC with dual supplies |
1+1 AC or DC with dual supplies |
1+1 AC or DC with dual supplies |
1+1 AC or DC with dual supplies |
|
Fans |
2 hot-swappable fan modules (with 2 fans each)2 |
2 hot-swappable fan modules (with 2 fans each)2 |
2 hot-swappable fan modules (with 2 fans each)2 |
2 hot-swappable fan modules (with 2 fans each)2 |
|
Noise |
65 dBA@ 25C 74 dBA maximum |
65 dBA@ 25C 74 dBA maximum |
65 dBA@ 25C 74 dBA maximum |
65 dBA@ 25C 74 dBA maximum |
|
Rack mountable |
Yes. Fixed mount brackets optional. (2- post). Mount rails included (4-post EIA- 310-D rack) |
Yes. Fixed mount brackets optional. (2- post). Mount rails included (4-post EIA- 310-D rack) |
Yes. Fixed mount brackets optional. (2- post). Mount rails included (4-post EIA- 310-D rack) |
Yes. Fixed mount brackets optional. (2- post). Mount rails included (4-post EIA- 310-D rack) |
|
Weight |
23 lb (10.5 kg) 1 x power supplies, 1 x NM, fan module, 1x SSD |
23 lb (10.5 kg) 1 x power supplies, 1 x NM, fan module, 1x SSD |
25 lb (11.4 kg) 2 x power supplies, 1 x NM, fan module, 1x SSD |
25 lb (11.4 kg) 2 x power supplies, 1 x NM, fan module, 1x SSD |
|
Temperature: operating |
32 to 104°F |
32 to 104°F or NEBS operation (see below)3 |
32 to 104°F |
32 to 104°F |
|
Temperature: nonoperating |
-4 to 149°F (-20 to 65°C) |
-4 to 149°F (-20 to 65°C) |
-4 to 149°F (-20 to 65°C) |
-4 to 149°F (-20 to 65°C) |
|
Humidity: operating |
10 to 85% noncondensing |
10 to 85% noncondensing |
10 to 85% noncondensing |
10 to 85% noncondensing |
|
Humidity: nonoperating |
5 to 95% noncondensing |
5 to 95% noncondensing |
5 to 95% noncondensing |
5 to 95% noncondensing |
|
Altitude: operating |
10,000 ft (max) |
10,000 ft (max) or NEBS operation (see below)3 |
10,000 ft (max) |
10,000 ft (max) |
|
Altitude: nonoperating |
40,000 ft (max) |
40,000 ft (max) |
40,000 ft (max) |
40,000 ft (max) |
Flexible payment solutions to help you achieve your objectives - Rent it with Nets AfterPay
|

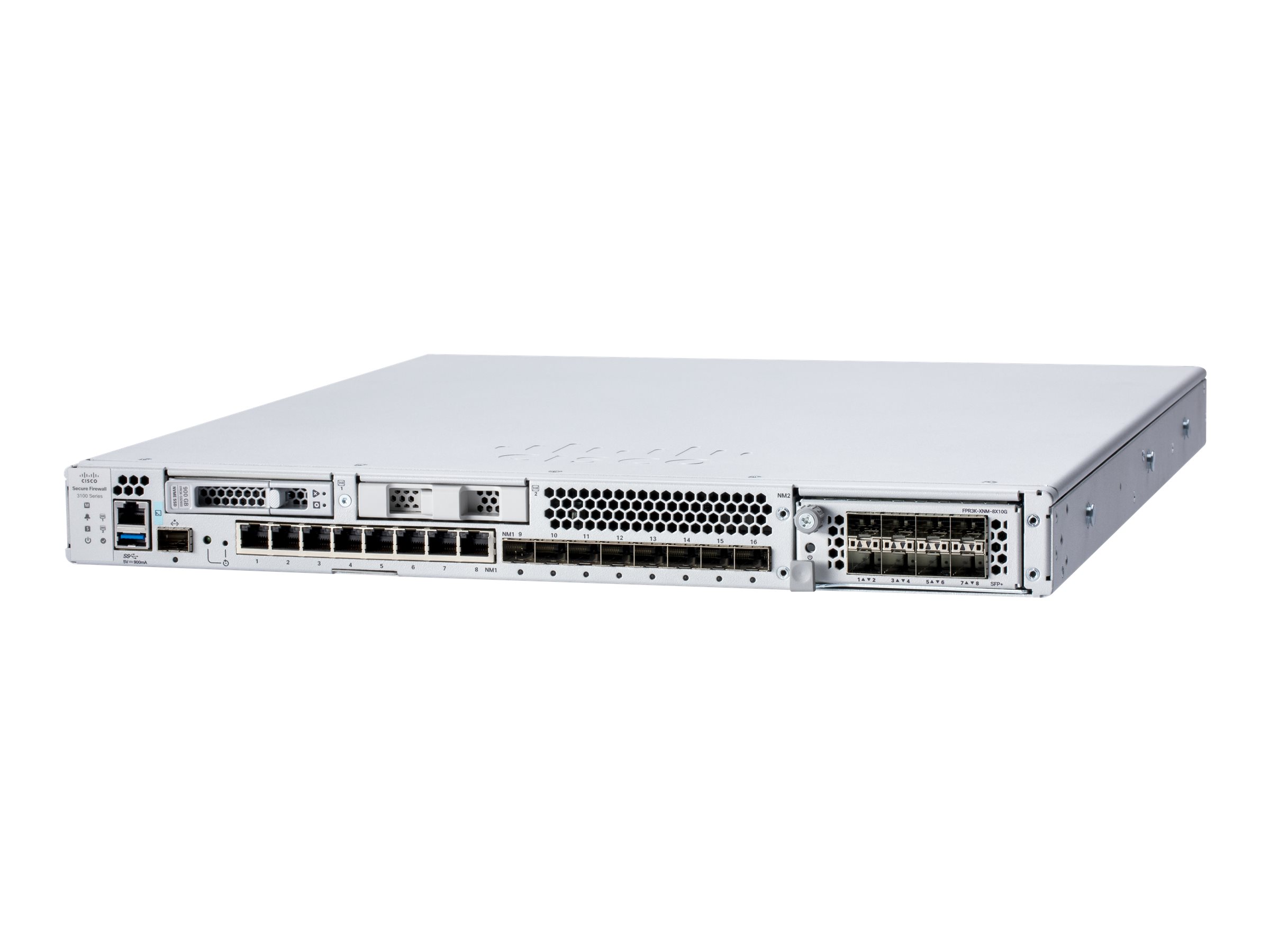

Cisco Secure Firewall 3100 Series
The enterprise-class Cisco Secure Firewall 3100 Series supports your changing world. It makes hybrid work and zero trust practical, with the flexibility to ensure a strong return on investment. The Cisco Secure Firewall 3100 Series is a family of four threat-focused security appliances that provide business resiliency and superior threat defense. Each model offers outstanding performance for the use of multiple firewalls, even when advanced threat features are enabled. These performance capabilities are enabled by a modern CPU architecture combined with purpose-built hardware that optimizes firewall, cryptographic and threat inspection capabilities.
The 3100 series also supports clustering to maximize performance, along with higher port density and Q-in-Q support that enables an expanded set of use cases. These functions support you flexibly as your needs develop and the scope of your business grows.
The series firewall throughput range addresses use cases from the Internet edge to the data center and private cloud. 3100 Series platforms run either ASA or Firewall Threat Defense (FTD). The platforms can be deployed in both firewall and dedicated IPS modes. For inline arrays and passive interfaces, the 3100 series supports Q-in-Q (stacked VLAN) up to two 802.1Q headers in one packet. The platform also supports fail-to-wire (FTW) network modules.
