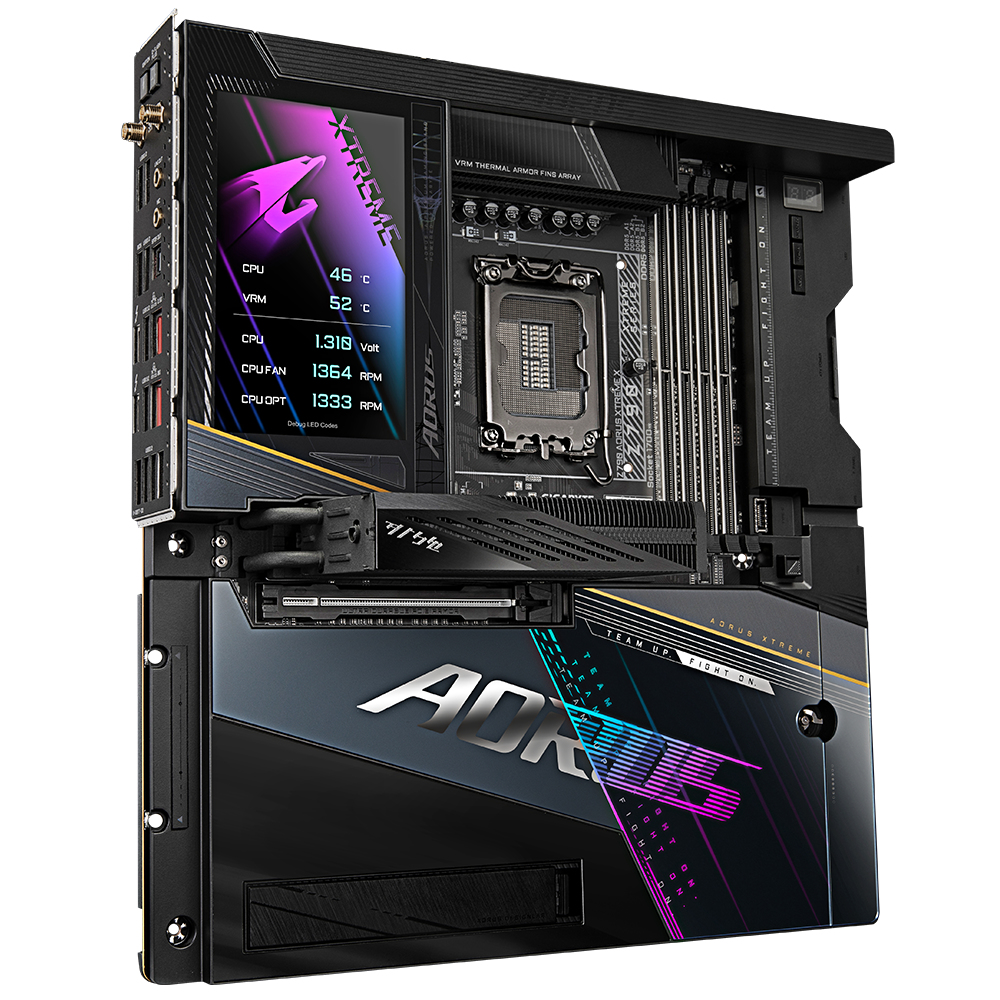

Gigabyte Z790 AORUS XTREME X
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Technical data
General
Product Type
Motherboard - extended ATX
Chipset Type
Intel Z790
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
192 GB
Technology
DDR5
Bus Clock
5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.), 7900 MHz (O.C.), 7950 MHz (O.C.), 8200 MHz (O.C.), 8266 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio
Type
High Definition Audio (7.1-channel)
Audio Codec
ESS ES9280AC
Compliant Standards
High Definition Audio
LAN
Network Controller
Qualcomm Wi-Fi 7 QCNCM865 / Marvell AQtion AQC107
Network Interfaces
10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 10 x USB 3.2 Gen 2 ¦ 2 x Thunderbolt 4 ¦ 1 x SPDIF out ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
4 x USB 3.2 Gen 1 - header ¦ 2 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB-C 3.2 Gen 2 - header ¦ 4 x USB 2.0 - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
System voltage, water cooling flow rate, fan fail warning, fan control, noise detection
Hardware Features
Q-Flash, Ultra Durable, 2x Copper PCB, 8 Layer PCB, Clear CMOS Button, Q-Flash Plus, RGB FUSION, NanoCarbon Baseplate, DIY Friendly Design, GIGABYTE Smart Fan 6, 24+1+2 Phase Power Design, M.2 EZ Latch click, M.2 EZ Latch plus, PCIe EZ Latch Plus, LCD Edge View, Real-time System Info, M.2 Thermal Guard Extreme, VRM Thermal Armor Fins-Array, Unique Startup Video
Miscellaneous
Software Included
Norton Internet Security
Compliant Standards
HDCP 2.3
Width
30.5 cm
Depth
28.5 cm
Gigabyte Z790 AORUS XTREME X - Motherboard - extended ATX - LGA1700 Socket - Z790 Chipset - USB-C, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 10 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - High Definition Audio (7.1-channel)
Gigabyte Z790 AORUS XTREME X Motherboard - Supports Intel 14th Gen CPUs, LGA 1700, 24+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. USB connector type: USB Type-A, USB Type-C
Introducing the AORUS Z790 X motherboard, a powerful platform with support for DDR5 memory, built to fully unleash productivity.
Introducing the GIGABYTE Z790 AORUS XTREME X Motherboard, meticulously designed for gaming and content creation. The motherboard supports the 13th Gen and the next-gen Intel Core processors, featuring an LGA 1700 socket. It delivers an advanced VRM design, efficient thermal management, PCIe 5.0 support, seamless DDR5 compatibility, and EZ-latch features for screwless installments. With its cutting-edge technology and user-friendly design, the Z790 AORUS XTREME X sets new standards for high-performance computing, ensuring optimal performance and easy maintenance for PC enthusiasts.
- Digital twin VRM solution
- Dual-channel memory module support
- M.2 heat sinks with screwless design
- Slots with a quick-release function
- Fast storage
- Efficient overall thermals
- Fast networking: LAN and Wi-Fi
- Extended connectivity: Thunderbolt and USB-C
- DTS:X audio
- LGA 1700: Supports Intel Core 13th and next-gen processors
- Digital direct 24+1+2 phases VRM solution
- Full support up to DDR5-8266
- 1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
- VRM Thermal Armor Fins-Array & M.2 Thermal Guard XTREME
- DIY-Friendly Design: Quick Release & Screwless Design for M.2 modules and graphics card
- Robust VRM design
With the all-digital power design, easily achieve peak performance and get stability under heavy workloads. - Efficient overall thermals
The motherboard is armored with an advanced, full-metal thermal design. The solid heat sinks are forged to keep the system cool while running fast. - Multilayer PCB
Enjoy dense integration, signal quality, power integrity, and low EMI for high performance. - Copper enhancement
Enhance system performance with improved heat dissipation, power handling, and seamless overclocking support. - Low dissipation factor
Elevate signal integrity in high-frequency circuits with the high-speed electronic design. - Dual Thunderbolt interface
Supports DisplayPort and enables the connection of multiple devices, including 4K and 8K displays, while providing charging capabilities. - Wi-Fi connectivity
With high bandwidth and low latency capabilities, ensures a smooth and immersive VR experience. - Multi-link operation
The MLO technology features a band for streaming and a band for gaming and results in a high-quality network experience with few interruptions. - 4K-QAM technology
Enjoy improved data throughput, resulting in fast file transfers and seamless streaming. - Deterministic low latency
Deterministic low latency ensures minimal delays, ideal for real-time applications like video conferencing and gaming. - Immersive audio
The Essential HEX USB DAC delivers improved sound quality with reduced pre-ringing, high reverberation strength, and an improved sound stage, the ideal choice for immersive audio experiences on various devices. - Audiophile-grade capacitors
These capacitors provide stable current and deliver a studio-quality experience. - Precision audio stream
Offers precise time triggers for digital-to-analog converters and provides excellent resistance to corrosion and oxidation. - Hi-Res audio
Reproduces frequencies up to 40 kHz or higher and ensures perfect audio quality for the user. - DTS:X Ultra
DTS Sound delivers immersive 3D audio for gaming on headphones or speakers and supports various formats for precise and immersive sound.
