StarTech 2S1P PCI Express interface card - PCIe serial / parallel card with breakout cable - parallel/serial adapter - PCIe low profile - RS-232 - 2 ports + 1 parallel port (PEX2S1P553B) - PEX2S1P553B

StarTech.com 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable. Host interface: PCIe, Output interface: Parallel, Serial, Expansion card form factor: Low-profile. Product colour: Black, Silver, Certification: CE, FCC, REACH. Chipset: ASIX - MCS9901CV-CC, Baud rate: 230.4 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server.... Width: 23 mm, Depth: 95 mm, Height: 79 mm

https://se.startech.com/product/PEX2S1P553B

Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot

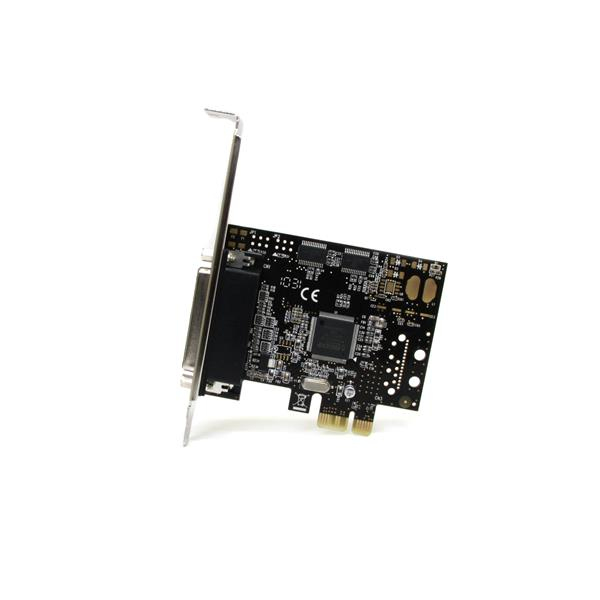

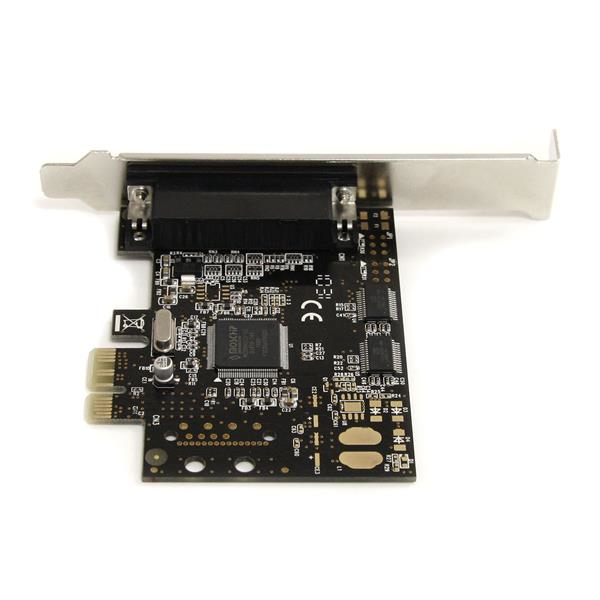

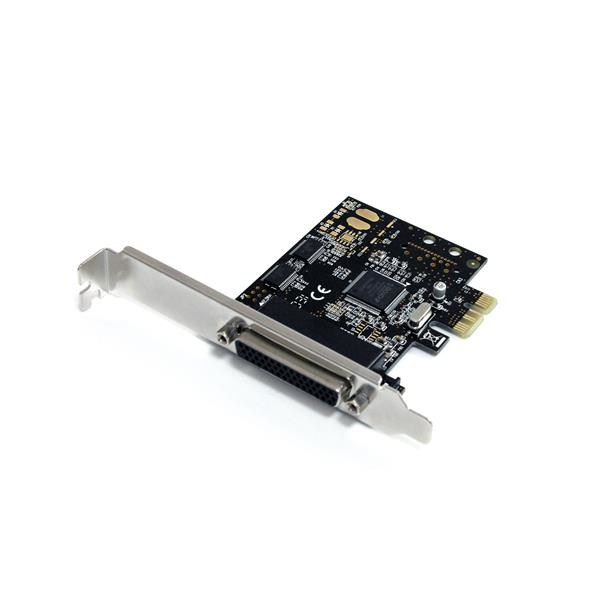

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

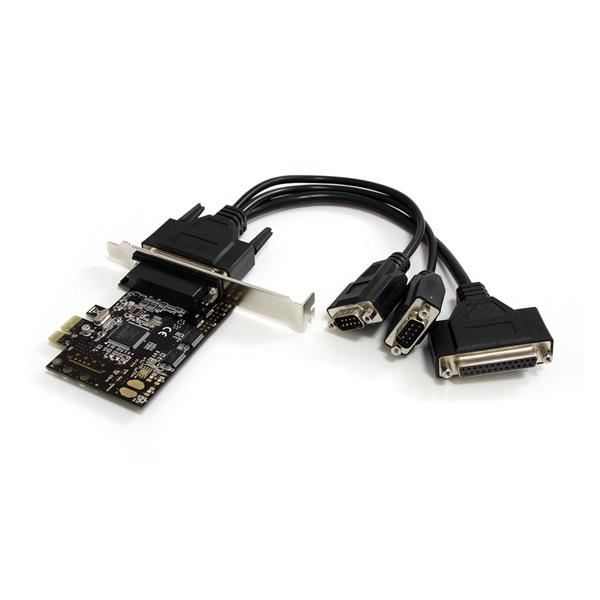

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.

The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.

This product is a replacement for our PEX2S1P552B card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

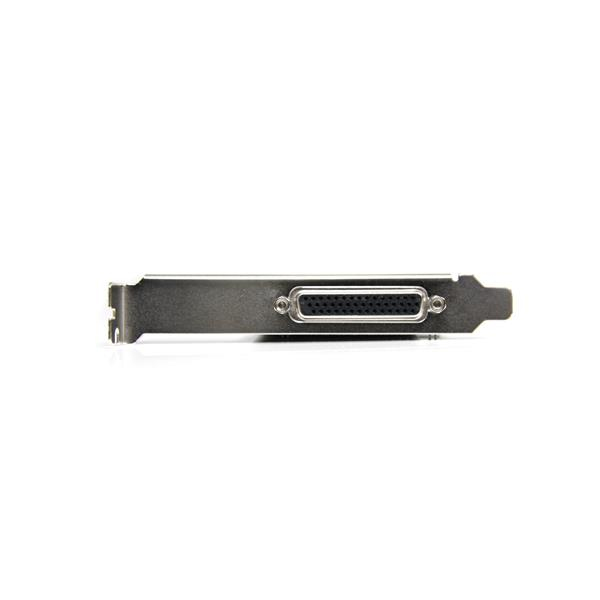

- Break-out cable design with low and standard profile brackets offers a versatile, single slot solution for adding 3 additional ports (2 serial, 1 parallel) to almost any system, including space-sensitive embedded applications
- Native single-chip design reduces CPU load for improved performance and reliability
- Broad Operating System support, including 64-bit Windows systems, for easy integration into mixed environments
