Supermicro AOMCTGI1SM - Internal - Wired
PCI-E x8 2.0 (5GT/s) - Intel 82599EN 10GbE - USB 2.0 - PCI Express - Ethernet - 1000 Mbit/s - Green
Brand: Supermicro
SKU: AOM-CTG-I1SM
£204.61
Price excl. VAT
£245.53
Price incl. VAT
Available – In Stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Internal
Y
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Maximum data transfer rate
1000 Mbit/s
Product colour
Green
Supermicro AOMCTGI1SM. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Green
| Warranty | 3 JAHRE |
|---|---|
| Estimate Gross Weight | 1.0 |
https://www.supermicro.com/products/accessories/addon/AOM-CTG-i1SM.cfm

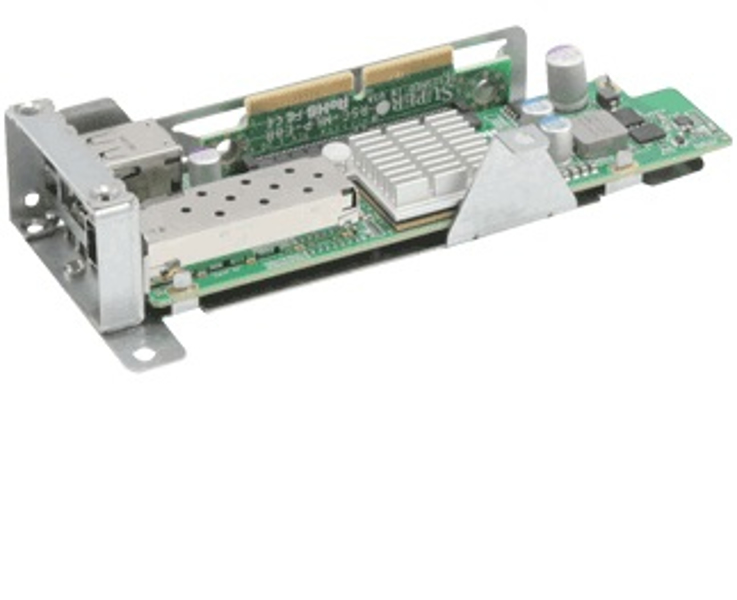

The AOM-CTG-i1SM 10 Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today's demanding data center environments. Based on the Intel® 10GbE network controller 82599EN, the AOM-CTG-i1SM addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.
General
- Intel® 82599EN 10GbE controller
- Compact size microLP form factor
- Single SFP+ port and dual USB 2.0 ports
- PCI-E x8 2.0 (5GT/s)
- Load balancing on multiple CPUs
- iSCSI remote boot support
- Fibre Channel over Ethernet (FCoE) Support
- Intel® PROSet Utility for Windows® Device Manager
I/O Features
- Intel QuickData Technology: DMA engine that enhances
- Data acceleration and lowers CPU usage
- Direct Cache Access (DCA) to avoid cache misses
- MSI-X support to minimize the overhead of interrupts
- Allowing load-balancing between multiple cores/CPUs
- Tx/Rx IP, SCTP, TCP and UDP checksum offloading
Capabilities (IPv4, IPv6)
- Receive and Transmit Side Scaling for Windows
- environments and Scalable I/O for Linux environments
Virtualization Features
- Supports virtualization features such as VMDq,
- Next-generation VMDq (64 queues per port) and
- PC-SIG SR-IOV implementation
- IPv6 Offloading
- Advanced Packet Filtering
- VLAN support to allow creation of multiple VLAN segments
Manageability Features
- Preboot eXecution Environment (PXE) support
- Simple Network Management Protocol (SNMP) and Remote
- Network Monitoring (RMON) statistics counters
- iSCSI remote boot
OS Support
- Windows® 7, 2003, 2008, 2008 R2, Vista
- RedHat EL, SuSe SLES
- FreeBSD
- VMWare
Cables Support
- SFP+ direct attached twin axial cables, up to 7 meters
- LC-LC fiber-optic cables (optional SFP+
transceiver is required)
The AOM-CTG-i1SM 10 Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today's demanding data center environments. Based on the Intel® 10GbE network controller 82599EN, the AOM-CTG-i1SM addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.
General
- Intel® 82599EN 10GbE controller
- Compact size microLP form factor
- Single SFP+ port and dual USB 2.0 ports
- PCI-E x8 2.0 (5GT/s)
- Load balancing on multiple CPUs
- iSCSI remote boot support
- Fibre Channel over Ethernet (FCoE) Support
- Intel® PROSet Utility for Windows® Device Manager
I/O Features
- Intel QuickData Technology: DMA engine that enhances
- Data acceleration and lowers CPU usage
- Direct Cache Access (DCA) to avoid cache misses
- MSI-X support to minimize the overhead of interrupts
- Allowing load-balancing between multiple cores/CPUs
- Tx/Rx IP, SCTP, TCP and UDP checksum offloading
Capabilities (IPv4, IPv6)
- Receive and Transmit Side Scaling for Windows
- environments and Scalable I/O for Linux environments
Virtualization Features
- Supports virtualization features such as VMDq,
- Next-generation VMDq (64 queues per port) and
- PC-SIG SR-IOV implementation
- IPv6 Offloading
- Advanced Packet Filtering
- VLAN support to allow creation of multiple VLAN segments
Manageability Features
- Preboot eXecution Environment (PXE) support
- Simple Network Management Protocol (SNMP) and Remote
- Network Monitoring (RMON) statistics counters
- iSCSI remote boot
OS Support
- Windows® 7, 2003, 2008, 2008 R2, Vista
- RedHat EL, SuSe SLES
- FreeBSD
- VMWare
Cables Support
- SFP+ direct attached twin axial cables, up to 7 meters
- LC-LC fiber-optic cables (optional SFP+
transceiver is required)
