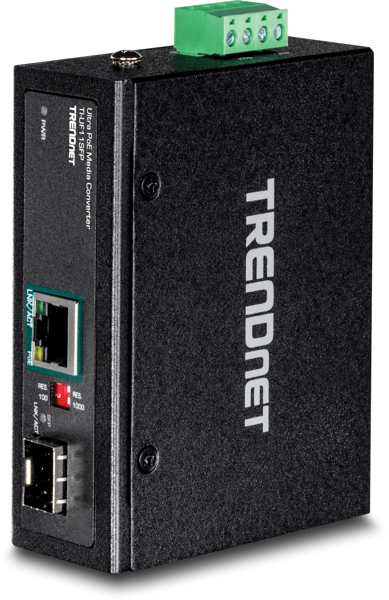

TRENDnet TI-UF11SFP - Media Converter - GigE
IP30 - SFP port - 40 km - 60 W - DIN-rail and wall mounts - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / SFP (mini-GBIC) - up to 40 km
Brand: TRENDnet
SKU: TI-UF11SFP
£88.91
Price excl. VAT
£106.69
Price incl. VAT
Available – In Stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Ethernet interface type
10 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet
Fiber optic connector
SFP
Connectivity technology
Wired
Maximum transfer distance
4000 m
Buffer size
1000 KB
Mean time between failures (MTBF)
510.304 h
Product colour
Black
Housing material
Aluminum
International Protection (IP) code
IP30
Input voltage
48 - 56 V
Power consumption (max)
72 W
Total Power over Ethernet (PoE) budget
60 W
Power over Ethernet (PoE)
Y
Trendnet TI-UF11SFP. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z, Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Fiber optic connector: SFP, Connectivity technology: Wired. Maximum transfer distance: 4000 m, Buffer size: 1000 KB, Mean time between failures (MTBF): 510.304 h. Product colour: Black, Housing material: Aluminum, International Protection (IP) code: IP30. Input voltage: 48 - 56 V, Power consumption (max): 72 W, Total Power over Ethernet (PoE) budget: 60 W
| Estimate Gross Weight | 0.443 |
|---|
https://www.trendnet.com/langen/support/supportdetail.asp?prod=130_TI-UF11SFP#tabs-solution01
TRENDnet’s Industrial SFP to Gigabit UPoE Media Converter, model TI-UF11SFP, converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.
Industrial Applications
Networks devices for manufacturing, general industrial, logistics, surveillance, and corporate applications.
UPoE Output
Converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points.
Industrial Environments
Hardened IP30 converter, with a -40 to 75 °C (-40 to 167 °F) operating temperature range.

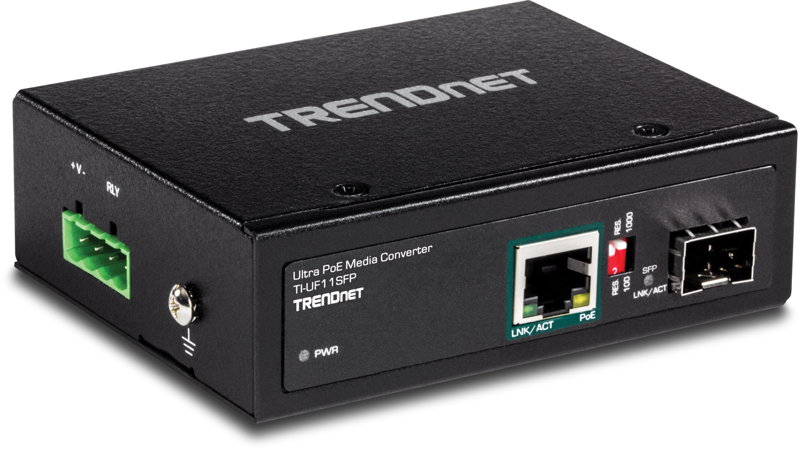

Network Ports
1 x Gigabit UPoE Ethernet port and 1 x SFP slot

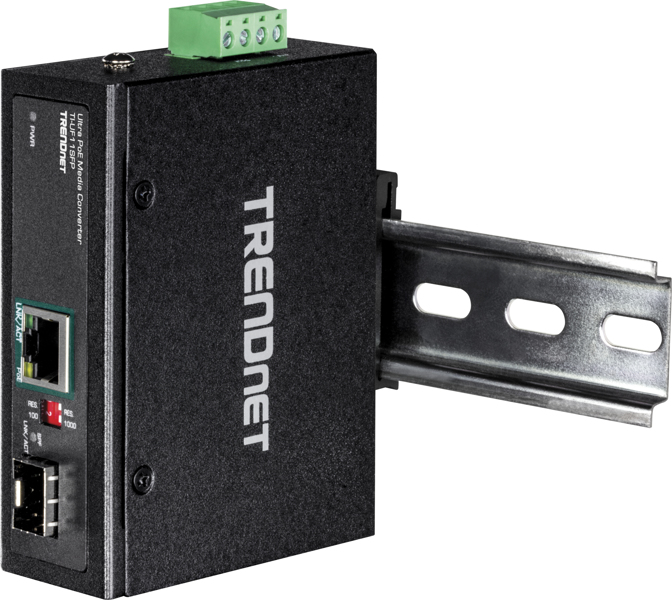

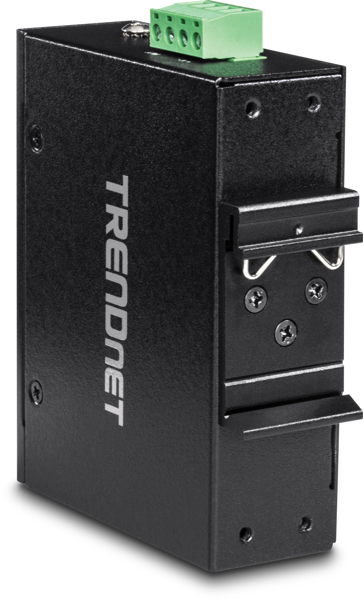

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware.
Switching Capacity
2Gbps switching capacity.
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance.
Operating Temperature
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F).
Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE Class A standards.
Certifications
Rated for information technology equipment (ITE) and industrial, scientific, and medical (ISM) Equipment.
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).

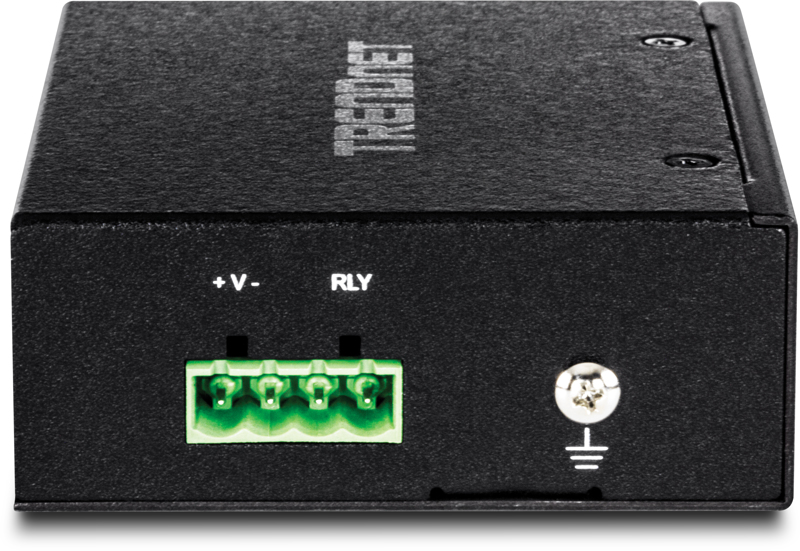

Grounding
Grounding point protects equipment from external electrical surges.
TRENDnet’s Industrial SFP to Gigabit UPoE Media Converter, model TI-UF11SFP, converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.
Industrial Applications
Networks devices for manufacturing, general industrial, logistics, surveillance, and corporate applications.
UPoE Output
Converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones, and wireless access points.
Industrial Environments
Hardened IP30 converter, with a -40 to 75 °C (-40 to 167 °F) operating temperature range.
Network Ports
1 x Gigabit UPoE Ethernet port and 1 x SFP slot
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware.
Switching Capacity
2Gbps switching capacity.
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance.
Operating Temperature
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F).
Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE Class A standards.
Certifications
Rated for information technology equipment (ITE) and industrial, scientific, and medical (ISM) Equipment.
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).
Grounding
Grounding point protects equipment from external electrical surges.
- Hardened IP30 rated SFP to Gigabit UPoE converter
- SFP port accommodates Multi or Single Mode fiber
- Up to 40 km fiber networking distances with the TI-MGBS40 SFP module
- Provides up to 60W for PoE, PoE+ and UPoE compliant devices
- Includes DIN-rail and wall mounts
- Wide operating temperature range -40 to 75 °C (-40 to 167 °F)
- Overload current protection
- Powers supply sold separately (model TI-S12048)
