Cisco Power supply - hot-plug (plug-in module)

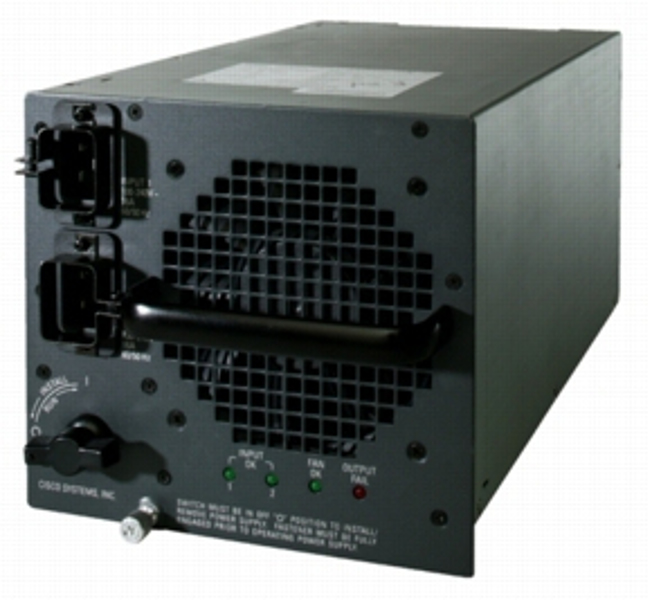

Catalyst 6500 Series 6000W AC Power Supply - Refurbished
Brand: Cisco Systems
SKU: WS-CAC-6000W-RF
£347.01
Price excl. VAT
£416.41
Price incl. VAT
Available – In Stock
Do you have any question about this product? Click here to contact our pre-sales consultant and make the right purchase.
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Product type
Power supply
Product colour
Black
Mean time between failures (MTBF)
300000 h
Compatibility
Cisco Catalyst 6506, Catalyst 6506-E, Catalyst 6509, Catalyst 6509-E, Catalyst 6509-NEB, Catalyst 6509-NEB-A, Catalyst 6513, Cisco OSR-7609, 7609, and 7613
Total power
6000 W
AC input voltage
100 - 240 V
AC input frequency
47 - 63 Hz
Width
203.2 mm
Depth
342.9 mm
Height
177.8 mm
Cisco CAC-6000W, Refurbished. Product type: Power supply, Product colour: Black, Mean time between failures (MTBF): 300000 h. Compatibility: Cisco Catalyst 6506, Catalyst 6506-E, Catalyst 6509, Catalyst 6509-E, Catalyst 6509-NEB, Catalyst.... Total power: 6000 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Width: 203.2 mm, Depth: 342.9 mm, Height: 177.8 mm
| Warranty | GARANTIE 1 JAHR |
|---|---|
| Estimate Gross Weight | 13.9 |
https://www.cisco.com/en/US/prod/collateral/switches/ps5718/ps708/product_data_sheet0900aecd801c5c84.html
The 6000-watt (W) power supply for the Cisco® Catalyst® 6500 Series chassis is a dual AC input power supply. When both inputs are at high line (220 VAC nominal voltage) then the output is 6000W. When both inputs are active but at least one is operating at low line (110 VAC nominal voltage), or a single input is active and running from a high line (220 VAC nominal voltage) source, the unit is capable of providing 2900W output power. (The power supply will not power up with 110V single input.)
All Cisco Catalyst 6500 Series chassis hold up to two load-sharing, fault-tolerant, hot-swappable power supplies. Only one supply is required to operate a fully loaded chassis. If a second supply is installed, it operates in a load-sharing capacity. The power supplies are hot-swappable-a failed power supply can be removed without powering off the system.
FEATURES AND BENEFITS
The 6000W power supply offers the following features:
- Universal input (100-240 VAC, 50-60 Hz).
- Compatible with full output in Cisco Catalyst 6506-E, Catalyst 6509-E, and Catalyst 6513 switches. Works in Catalyst 6506 and Catalyst 6509 with a maximum output of 4000W.
- Redundant and hot swappable.
The 6000-watt (W) power supply for the Cisco® Catalyst® 6500 Series chassis is a dual AC input power supply. When both inputs are at high line (220 VAC nominal voltage) then the output is 6000W. When both inputs are active but at least one is operating at low line (110 VAC nominal voltage), or a single input is active and running from a high line (220 VAC nominal voltage) source, the unit is capable of providing 2900W output power. (The power supply will not power up with 110V single input.)
All Cisco Catalyst 6500 Series chassis hold up to two load-sharing, fault-tolerant, hot-swappable power supplies. Only one supply is required to operate a fully loaded chassis. If a second supply is installed, it operates in a load-sharing capacity. The power supplies are hot-swappable-a failed power supply can be removed without powering off the system.
FEATURES AND BENEFITS
The 6000W power supply offers the following features:
- Universal input (100-240 VAC, 50-60 Hz).
- Compatible with full output in Cisco Catalyst 6506-E, Catalyst 6509-E, and Catalyst 6513 switches. Works in Catalyst 6506 and Catalyst 6509 with a maximum output of 4000W.
- Redundant and hot swappable.
