Supermicro SuperServer SYS-F628R3-RTBPTN+
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Motherboard chipset
Intel® C612
Processor socket
LGA 2011 (Socket R)
System bus rate
9.6 GT/s
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB, 8GB, 16GB, 32GB, 64GB
Maximum internal memory
2000 GB
Storage drive sizes supported
3.5 "
Supported storage drive interfaces
Serial ATA III
On-board graphics adapter model
Aspeed AST2400
Ethernet interface type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN
Y
Ethernet LAN data rates
100,1000,10000 Mbit/s
Copper ethernet cabling technology
10GBASE-T,100BASE-TX,1000BASE-T
Supermicro SuperServer F628R3-RTBPTN+. Motherboard chipset: Intel® C612, Processor socket: LGA 2011 (Socket R), System bus rate: 9.6 GT/s. Supported memory types: DDR4-SDRAM, Supported DIMM module capacities: 4GB, 8GB, 16GB, 32GB, 64GB, Maximum internal memory: 2000 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA III. On-board graphics adapter model: Aspeed AST2400. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 100,1000,10000 Mbit/s, Copper ethernet cabling technology: 10GBASE-T,100BASE-TX,1000BASE-T
Supermicro provides the outstanding product line, their proven high level of quality and performance has made SuperServers the platform of choice for enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.

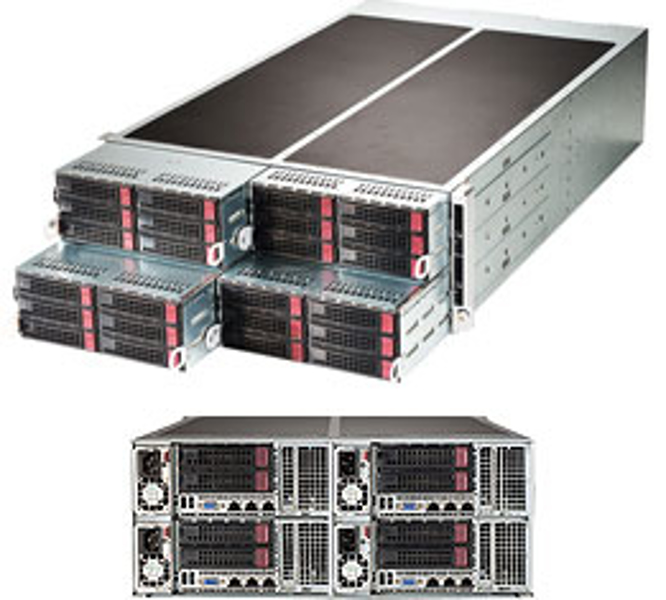

The Supermicro FatTwin is a high-density 8/4/2 hot-plug node SuperServer system available with a variety of memory capacities, HDD technologies, PCI alternatives, networking capabilities, and GPU support options. The FatTwin supports up to: 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots, 1 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Micro LP card , 8 ports of Broadcom 3008 SAS 3.0 (12Gbps) with Software RAID , 10 ports of SATA 3.0 (6Gbps) with Intel C612 controller, dual 10GBase-T or dual Gigabit Ethernet ports, redundant Titanium Level (96%) Digital power supplies, integrated IPMI 2.0 with KVM over dedicated LAN, and dual Intel Xeon processor E5 -2600 v4 product families up to 22 cores and 145W TDP.
The Supermicro FatTwin represents a revolution in Green Computing designed to support customers' critical applications and also reduce Data Center TCO to help preserve the environment. The FatTwin extends the compute and storage capabilities of Supermicro's existing Twin SuperServer systems to achieve increased performance and power efficiency. Due to its shared components the FatTwin improves cost-effectiveness and reliability, while its modular architecture makes it flexible to configure and easy to maintain.
Versatile configurations allow the FatTwin to be optimized for many different environments including Enterprise , Data Center, Cloud Computing, HPC, Financial, Science and Engineering, File and Storage Servers.
- Uncompromising quality control
- Comprehensive line of servers, storage systems, and subsystems
- High performance per-watt, per-square-foot
- Superior product design
- Great total cost of ownership
- High quality components and materials
- Supermicro SuperServer F628R3-RTBPTN+
- 8 x CPU Heatsink
- 8 x SGPIO cable
| Estimate Gross Weight | 68.0 |
|---|---|
| Estimate Gross Weight | 68.0 |
The Supermicro FatTwin is a high-density 8/4/2 hot-plug node SuperServer system available with a variety of memory capacities, HDD technologies, PCI alternatives, networking capabilities, and GPU support options. The FatTwin supports up to: 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 16 DIMM slots, 1 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Micro LP card , 8 ports of Broadcom 3008 SAS 3.0 (12Gbps) with Software RAID, 10 ports of SATA 3.0 (6Gbps) with Intel C612 controller, dual 10GBase-T or dual Gigabit Ethernet ports, redundant Titanium Level (96%) Digital power supplies, integrated IPMI 2.0 with KVM over dedicated LAN, and dual Intel Xeon processor E5-2600 v4 product families up to 22 cores and 145W TDP.
The Supermicro FatTwin represents a revolution in Green Computing designed to support customers' critical applications and also reduce Data Center TCO to help preserve the environment. The FatTwin extends the compute and storage capabilities of Supermicro's existing Twin SuperServer systems to achieve increased performance and power efficiency. Due to its shared components the FatTwin improves cost-effectiveness and reliability, while its modular architecture makes it flexible to configure and easy to maintain.
Versatile configurations allow the FatTwin to be optimized for many different environments including Enterprise, Data Center, Cloud Computing, HPC, Financial, Science and Engineering, File and Storage Servers.
