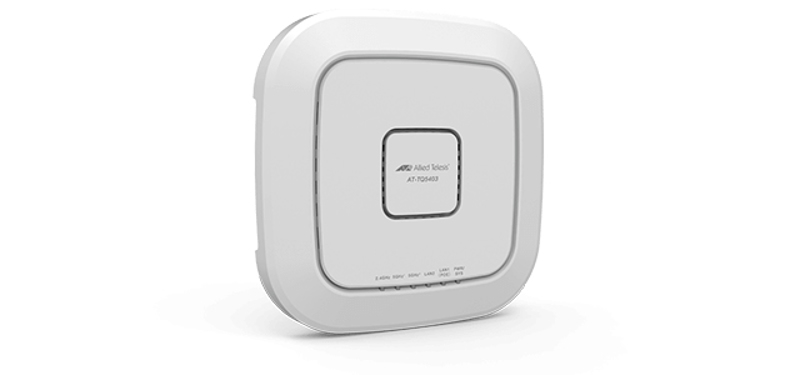

Allied Telesis AT TQ5403 Wireless Access Point
Buy with confidence: honest stock, fair trade terms
Better prices with correct stock availability, and secure payments with full transparency.
- Aggregated live stock: availability shown is the combined aggregated stock of our warehouses and partner distributors, updated in real time. If it says available, it is available.
- No charge until confirmed: your payment is only reserved at checkout and is charged once your item is secured.
- 24-hour free cancellation: changed your mind? Cancel within 24 hours and the reserved payment is released in full.
- Stock sold out? Full refund: if an item becomes unavailable after you order, we cancel and release or refund 100% of your payment.
- From Our Warehouse to Your Door. every order is checked, packed at our warehouses and dispatched with DHL Express, UPS or FedEx as DDP – No customs or duties to pay. No hidden charges
- Fair cancellation and return terms: for late cancellations or returns of expensive, special-order items without a fault, a fee of up to 5-10% may apply, covering only actual shipping and handling costs to sustain our business. Faulty items and RMA cases are never charged. No late-payment fees, no interest ever. Full terms
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
2133 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4-2.4835; 5.15-5.25; 5.25-5.35; 5.47-5.725; 5.725-5.85 GHz
5 GHz
Y
Security algorithms
64-bit WEP,128-bit WEP,HTTPS,SNMP,WPA,WPA-AES,WPA-Enterprise,WPA-PSK,WPA-TKIP,WPA2,WPA2-AES,WPA2-CCMP,WPA2-Enterprise,WPA2-PSK,WPA2-TKIP
Service Set Identifier (SSID) features
Hidden SSID
AC input voltage
100 - 240 V
Power consumption (typical)
10 W
Power consumption (max)
20 W
Placement
Ceiling, Wall
Product colour
White
Cable lock slot
Y
Cable lock slot type
Kensington
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
4.83 dBi
Allied Telesis AT-TQ5403. Maximum data transfer rate: 2133 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s, Frequency band: 2.4-2.4835; 5.15-5.25; 5.25-5.35; 5.47-5.725; 5.725-5.85 GHz. Security algorithms: 64-bit WEP,128-bit..., Service Set Identifier (SSID) features: Hidden SSID. AC input voltage: 100 - 240 V, Power consumption (typical): 10 W, Power consumption (max): 20 W. Placement: Ceiling, Wall, Product colour: White, Cable lock slot type: Kensington. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 4.83 dBi
The TQ5403 is a hybrid WLAN solution for optimized wireless networking across the Enterprise. By allowing simultaneous multi-channel and single-channel WLAN operations using a single access point design, network administrators can combine the performance attributes of the two architectures to best suit their specific deployment requirements.
Capable of up to 2133Mbps raw wireless throughput from its single 2.4GHz radio and dual 5GHz IEEE 802.11ac radios, the TQ5403 supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput for a better user experience.
The TQ5403 may operate standalone, or be managed by the AWC controller. It is suitable for a wide range of deployments and is ideal for providing reliable coverage in highly dynamic environments like warehouses, and for seamless roaming in critical environments like hospitals and manufacturing plants.
Hybrid 3-radio 802.11ac Wave 2 Wireless Access Point
The Allied Telesis Enterprise-class TQ5403 Hybrid 3-radio Wireless Access Point features IEEE 802.11ac Wave 2 technology with two spatial streams to deliver a raw capacity of 2.133 Gigabits.
The innovative Channel Blanket hybrid mode of the TQ5403 enables optimized wireless networking for all environments. By allowing simultaneous multi-channel and single-channel WLAN connectivity from the same access point, network administrators can combine the performance attributes of the two architectures to best suit their specific deployment requirements.
The TQ5403 has a single 2.4GHz radio and dual 5GHz IEEE 802.11ac radios, and supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. Combined with a comprehensive feature-set, the APs provide a superior wireless solution for customers from SMBs to large Enterprises.
Smaller businesses can operate the TQ5403 in standalone mode, using its intuitive web-based user interface. For larger installations it can be managed by Allied Telesis Autonomous Wave Control (AWC). With AWC, the wireless network is regularly analyzed, and APs are dynamically updated to reduce interference, minimize coverage gaps, and optimize performance—all with no user intervention. Allied Telesis network management platform, Vista Manager EX, has an AWC wireless management plugin that supports up to 3,000 APs.
Flexible deployment options enable easy installation, with the TQ5403 able to be used on the desktop or mounted on a wall or ceiling. Power may be supplied by Power over Ethernet, for the simplicity of having the Ethernet network connect and power the APs, or by an optional AC power adapter.
- Network administrators can combine the performance attributes of the two architectures to best suit their specific deployment requirements
- Supports Multi-User Multiple Input and Multiple Output (MU-MIMO)
- Allows multiple clients to send and receive data at the same time, substantially increasing throughput
- May operate standalone, or be managed by the AWC controller
- Suitable for a wide range of deployments
- Ideal for providing reliable coverage in highly dynamic environments like warehouses
- Channel Blanket Hybrid Operation for simultaneous multi-channel and single-channel support
- Fast Roaming enable users to seamlessly move between AP
- IEEE 802.11ac Wave 2 to increase throughput
- Tri-radio, with Band Steering for a better user experience
- Virtual APs with Multiple SSIDs
- Captive Portal for easy user management
- Web-based user interface for easy management and monitoring of a single AP
- AWC support for APs management and automatic wireless network optimization
- Link Aggregation to double the bandwidth to the wired network
- Airtime Fairness to ensure fair and predictable sharing of bandwidth
| Estimate Gross Weight | 2.532 |
|---|
Hybrid 3-radio 802.11ac Wave 2 Wireless Access Point
The Allied Telesis Enterprise-class TQ5403 Hybrid 3-radio Wireless Access Point features IEEE 802.11ac Wave 2 technology with two spatial streams to deliver a raw capacity of 2.133 Gigabits.
The innovative Channel Blanket hybrid mode of the TQ5403 enables optimized wireless networking for all environments. By allowing simultaneous multi-channel and single-channel WLAN connectivity from the same access point, network administrators can combine the performance attributes of the two architectures to best suit their specific deployment requirements.
The TQ5403 has a single 2.4GHz radio and dual 5GHz IEEE 802.11ac radios, and supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. Combined with a comprehensive feature-set, the APs provide a superior wireless solution for customers from SMBs to large Enterprises.
Smaller businesses can operate the TQ5403 in standalone mode, using its intuitive web-based user interface. For larger installations it can be managed by Allied Telesis Autonomous Wave Control (AWC). With AWC, the wireless network is regularly analyzed, and APs are dynamically updated to reduce interference, minimize coverage gaps, and optimize performanceΓÇöall with no user intervention. Allied Telesis network management platform, Vista Manager EX, has an AWC wireless management plugin that supports up to 3,000 APs.
Flexible deployment options enable easy installation, with the TQ5403 able to be used on the desktop or mounted on a wall or ceiling. Power may be supplied by Power over Ethernet, for the simplicity of having the Ethernet network connect and power the APs, or by an optional AC power adapter.
- Channel Blanket Hybrid Operation for simultaneous multi-channel and single-channel support
- Fast Roaming enable users to seamlessly move between AP
- IEEE 802.11ac Wave 2 to increase throughput
- Tri-radio, with Band Steering for a better user experience
- Virtual APs with Multiple SSIDs
- Captive Portal for easy user management
- Web-based user interface for easy management and monitoring of a single AP
- AWC support for APs management and automatic wireless network optimization
- Link Aggregation to double the bandwidth to the wired network
- Airtime Fairness to ensure fair and predictable sharing of bandwidth
